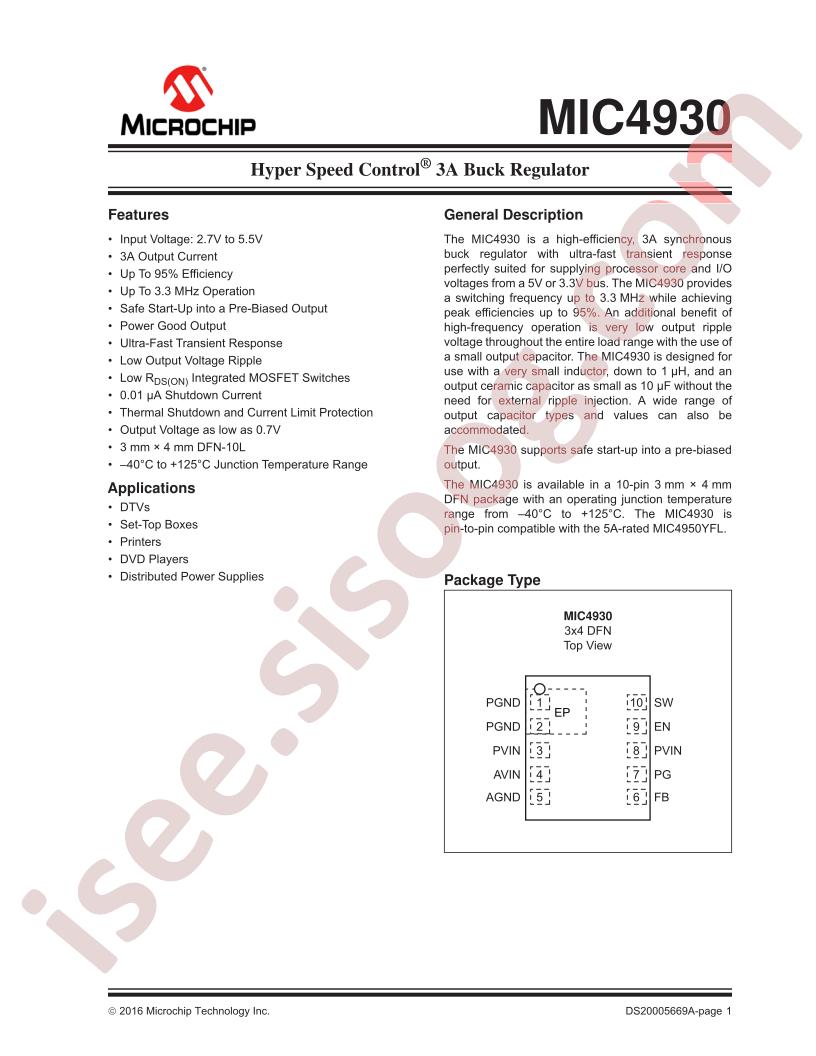

دیتاشیت MIC4930YFL-T5
مشخصات دیتاشیت
| نام دیتاشیت |
MIC4930
|
| حجم فایل |
1995.895
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
24
|
مشخصات
-
Manufacturer:
Microchip Technology
-
Series:
Hyper Speed Control®
-
Packaging:
Tape & Reel (TR)
-
Part Status:
Active
-
Function:
Step-Down
-
Output Configuration:
Positive
-
Topology:
Buck
-
Output Type:
Adjustable
-
Number of Outputs:
1
-
Voltage - Input (Min):
2.7V
-
Voltage - Input (Max):
5.5V
-
Voltage - Output (Min/Fixed):
0.625V
-
Voltage - Output (Max):
5.5V
-
Current - Output:
3A
-
Frequency - Switching:
Up to 3.3MHz
-
Synchronous Rectifier:
Yes
-
Operating Temperature:
-40°C ~ 125°C (TJ)
-
Mounting Type:
Surface Mount
-
Package / Case:
10-VDFN Exposed Pad
-
Supplier Device Package:
10-DFN (3x4)
-
Base Part Number:
MIC4930
-
detail:
Buck Switching Regulator IC Positive Adjustable 0.625V 1 Output 3A 10-VDFN Exposed Pad
