دیتاشیت TEA1530T/N2,118

مشخصات دیتاشیت

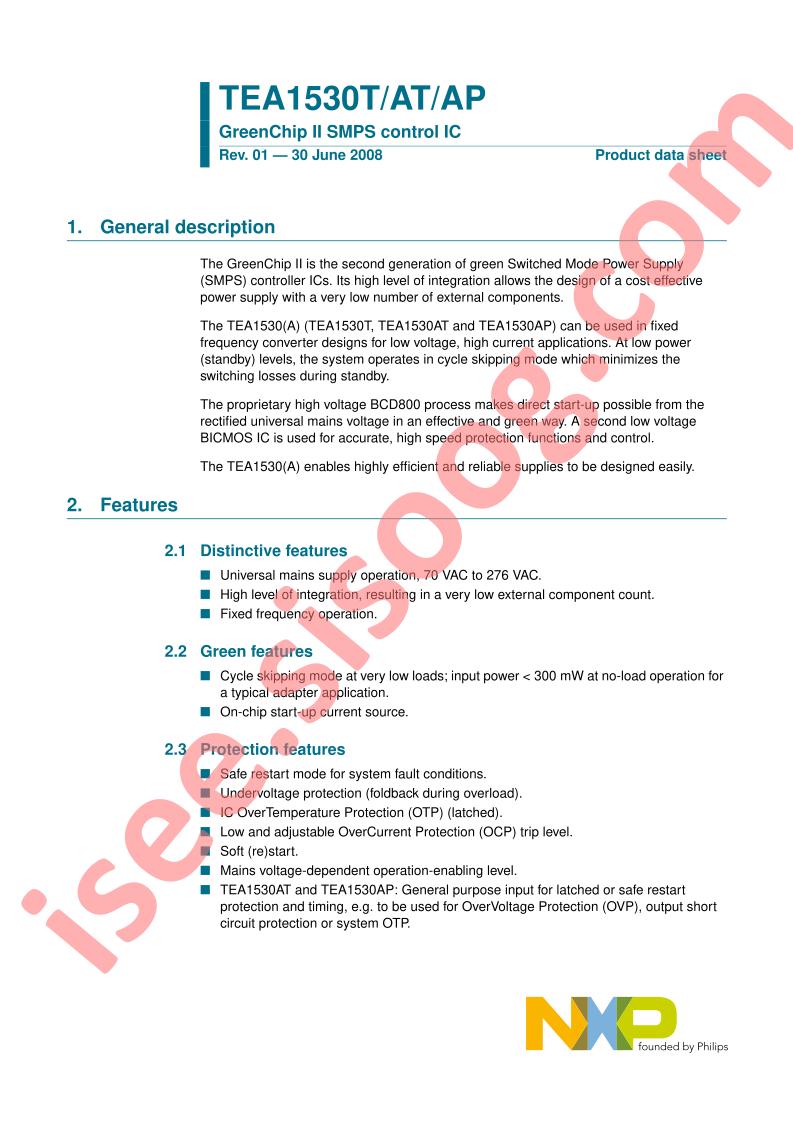

دانلود دیتاشیت TEA1530(AP,AT,T)	TEA1530(AP,AT,T) Datasheet

Manufacturer: NXP USA Inc.
Series: GreenChip™ II
Packaging: Tape & Reel (TR)
Part Status: Obsolete
Output Isolation: Isolated
Internal Switch(s): No
Voltage - Breakdown: 650V
Topology: Flyback
Voltage - Start Up: 11V
Voltage - Supply (Vcc/Vdd): 8.7V ~ 20V
Duty Cycle: 70%
Frequency - Switching: 63kHz
Power (Watts): 65W
Fault Protection: Current Limiting, Over Temperature, Over Voltage, Short Circuit
Control Features: -
Operating Temperature: -20°C ~ 145°C (TJ)
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package: 8-SO
Mounting Type: Surface Mount
Base Part Number: TEA153
detail: Converter Offline Flyback Topology 63kHz 8-SO
