دیتاشیت MAX20098ATEC/VY+

مشخصات دیتاشیت

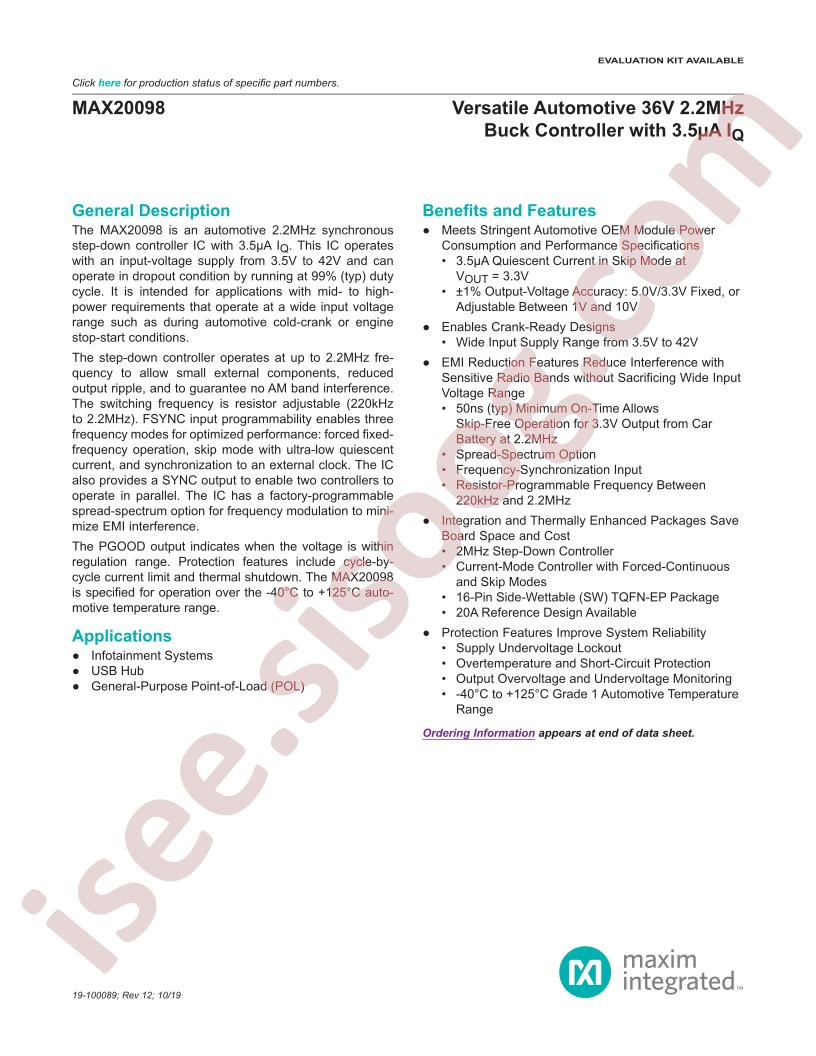

دانلود دیتاشیت MAX20098 Abridged Datasheet	MAX20098 Abridged Datasheet Datasheet

RoHS: true
Category: Power Supply Chip/DC-DC Controllers
Function: Step-down type
Topology: Step-down
Datasheet: Analog Devices Inc./Maxim Integrated MAX20098ATEC/VY+
Input Voltage: 3.5V~42V
Duty Cycle (Max): -
Number of Outputs: 1
Switching Frequency: 2.2MHz
Operating Temperature: -40°C~+125°C
Synchronous Rectification: Yes
Package: TQFN-16(3x3)
Manufacturer: Analog Devices Inc./Maxim Integrated
Mounting Type: Surface Mount
Base Part Number: MAX200
Output Configuration: Positive
Supplier Device Package: 16-TQFN (3x3)
Package / Case: 16-WFQFN Exposed Pad
Frequency - Switching: 220kHz ~ 2.2MHz
Part Status: Active
Output Type: Transistor Driver
Series: -
Serial Interfaces: -
Synchronous Rectifier: Yes
Clock Sync: Yes
Output Phases: 1
Control Features: Current Limit, Enable, Power Good
Voltage - Supply (Vcc/Vdd): 3.5V ~ 42V
detail: Buck Regulator Positive Output Step-Down DC-DC Controller IC 16-TQFN (3x3)
