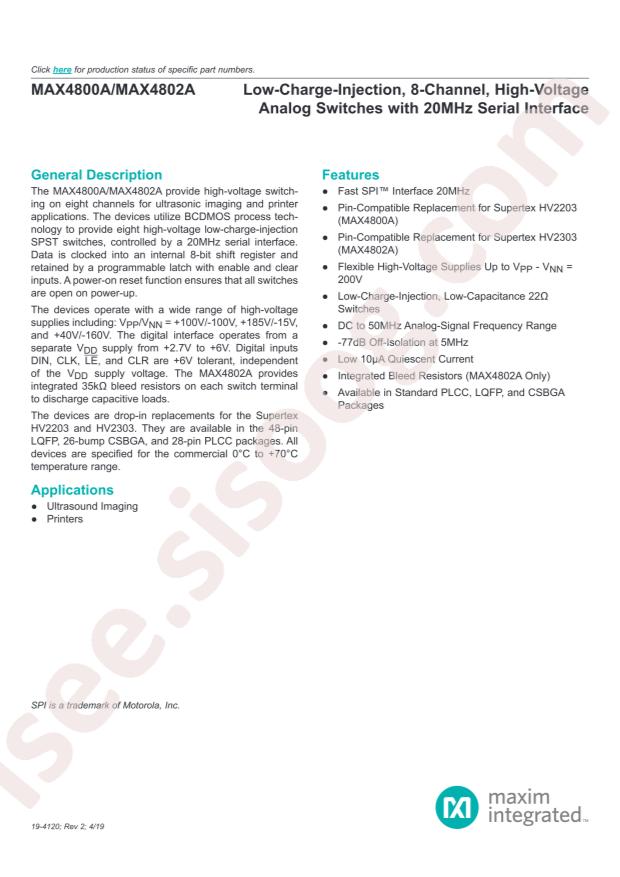

- دیتاشیت MAX4802ACQI+
MAX4802ACQI+ دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | MAX4802ACQI+ |
|---|---|
| حجم فایل | 67.15 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 16 |
دانلود دیتاشیت MAX4802ACQI+ |
دانلود دیتاشیت |
|---|
سایر مستندات
Part Numbering System 7 pages
MAX4800,02(A) 16 pages
مشخصات فنی
- RoHS: true
- Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
- Datasheet: Analog Devices Inc./Maxim Integrated MAX4802ACQI+
- Switch Circuit: -
- Package: PLCC-28(11.51x11.51)
- Manufacturer: Analog Devices Inc./Maxim Integrated
- Multiplexer/Demultiplexer Circuit: 1:1
- Part Status: Active
- Charge Injection: -
- -3db Bandwidth: -
- Operating Temperature: 0°C ~ 70°C (TA)
- Voltage - Supply, Dual (V±): -
- Supplier Device Package: 28-PLCC (11.51x11.51)
- Package / Case: 28-LCC (J-Lead)
- Switch Time (Ton, Toff) (Max): 5µs, 5µs
- Packaging: Tube
- Channel-to-Channel Matching (ΔRon): 1.9Ohm
- Voltage - Supply, Single (V+): 2.7V ~ 6V
- Channel Capacitance (CS(off), CD(off)): 18pF
- Mounting Type: Surface Mount
- Series: -
- Crosstalk: -80dB @ 5MHz
- Number of Circuits: 8
- Current - Leakage (IS(off)) (Max): 2µA
- Base Part Number: MAX4802
- On-State Resistance (Max): 38Ohm
- detail: 8 Circuit IC Switch 1:1 38Ohm 28-PLCC (11.51x11.51)
