TP2640LG-G دیتاشیت

TP2640LG-G

مشخصات دیتاشیت

نام دیتاشیت TP2640LG-G
حجم فایل 65.102 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

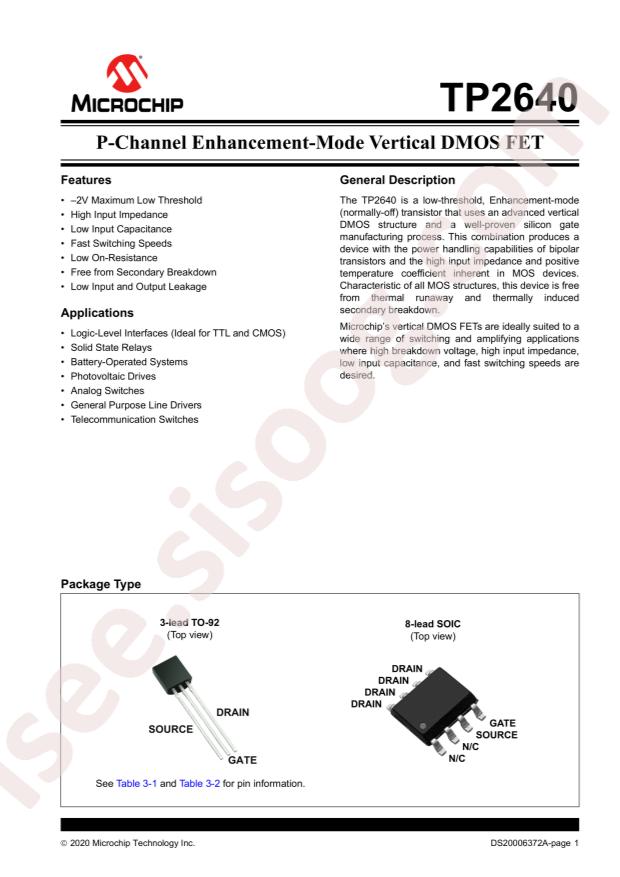

مشاهده دیتاشیت TP2640LG-G

دانلود دیتاشیت

سایر مستندات

TP2640 6 pages

مشخصات فنی

  • RoHS: true
  • Type: P Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: Microchip Tech TP2640LG-G
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 740mW
  • Drain Source Voltage (Vdss): 400V
  • Input Capacitance (Ciss@Vds): 300pF@25V
  • Continuous Drain Current (Id): 86mA
  • Gate Threshold Voltage (Vgs(th)@Id): 2V@1mA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 15Ω@300mA,10V
  • Package: SOP-8
  • Manufacturer: Microchip Tech
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • FET Type: P-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 400V
  • Current - Continuous Drain (Id) @ 25°C: 86mA (Tj)
  • Drive Voltage (Max Rds On, Min Rds On): 2.5V, 10V
  • Rds On (Max) @ Id, Vgs: 15Ohm @ 300mA, 10V
  • Vgs(th) (Max) @ Id: 2V @ 1mA
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 300pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 740mW (Ta)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 8-SOIC
  • Package / Case: 8-SOIC (0.154", 3.90mm Width)
  • detail: P-Channel 400V 86mA (Tj) 740mW (Ta) Surface Mount 8-SOIC
