دیتاشیت TDA1565TH/N1C,118
مشخصات دیتاشیت
| نام دیتاشیت | TDA1565TH |
|---|---|
| حجم فایل | 242.684 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 27 |
دانلود دیتاشیت TDA1565TH |

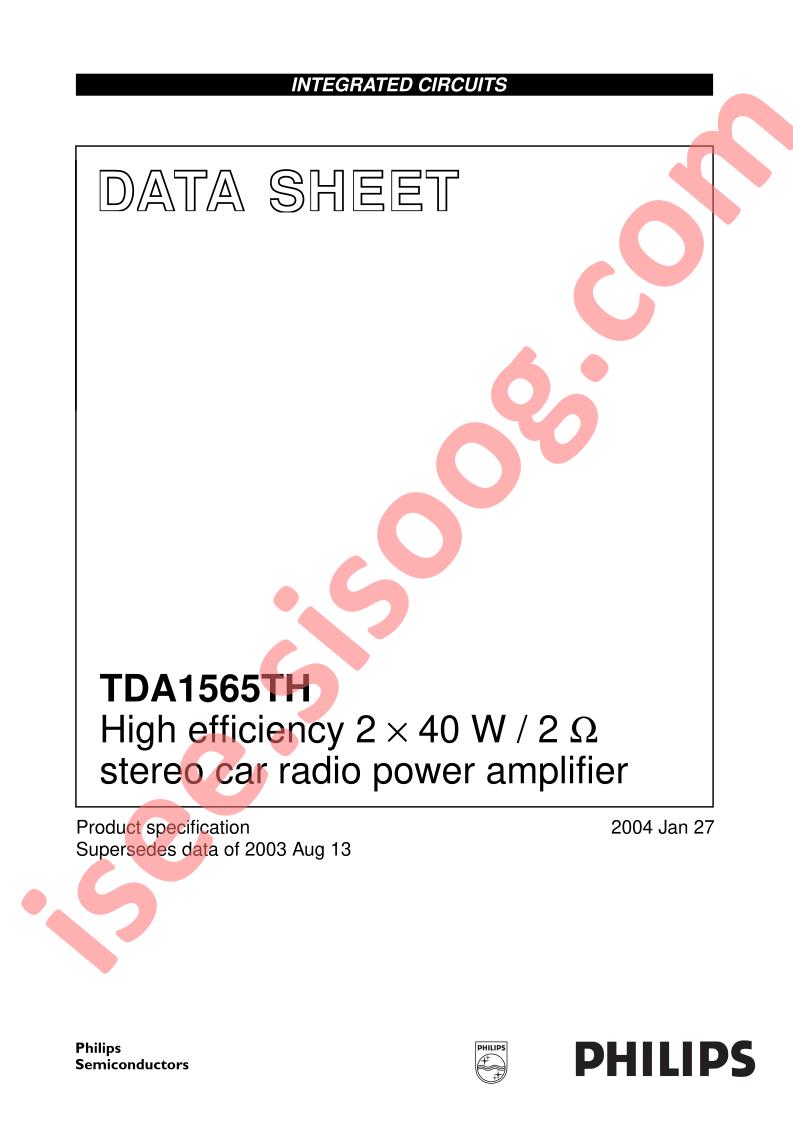

TDA1565TH Datasheet |
|---|
مشخصات
- Manufacturer: NXP USA Inc.
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Obsolete
- Type: Class AB
- Output Type: 2-Channel (Stereo)
- Max Output Power x Channels @ Load: 60W x 2 @ 2Ohm
- Voltage - Supply: 6V ~ 18V
- Features: Differential Inputs, Mute, Short-Circuit and Thermal Protection, Standby
- Mounting Type: Surface Mount
- Operating Temperature: -40°C ~ 85°C (TA)
- Supplier Device Package: 20-HSOP
- Package / Case: 20-SOIC (0.433", 11.00mm Width) Exposed Pad
- Base Part Number: TDA156
- detail: Amplifier IC 2-Channel (Stereo) Class AB 20-HSOP
