TDA8560Q دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
TDA8560Q
|
|
حجم فایل
|
85.348
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
16
|
مشخصات فنی
-
Manufacturer:
NXP USA Inc.
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Obsolete
-
Type:
Class B
-
Output Type:
2-Channel (Stereo)
-
Max Output Power x Channels @ Load:
55W x 2 @ 2Ohm
-
Voltage - Supply:
6V ~ 18V
-
Features:
Depop, Mute, Short-Circuit and Thermal Protection, Standby
-
Mounting Type:
Through Hole
-
Operating Temperature:
-40°C ~ 85°C (TA)
-
Supplier Device Package:
13-PDBS
-

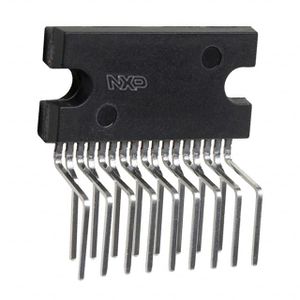

Package / Case:
13-SIP Formed Leads
-
Base Part Number:
TDA856
-
detail:
Amplifier IC 2-Channel (Stereo) Class B 13-PDBS
