دیتاشیت BUK9213-30A,118

BUK9213-30A

مشخصات دیتاشیت

نام دیتاشیت BUK9213-30A
حجم فایل 364.68 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

دانلود دیتاشیت BUK9213-30A

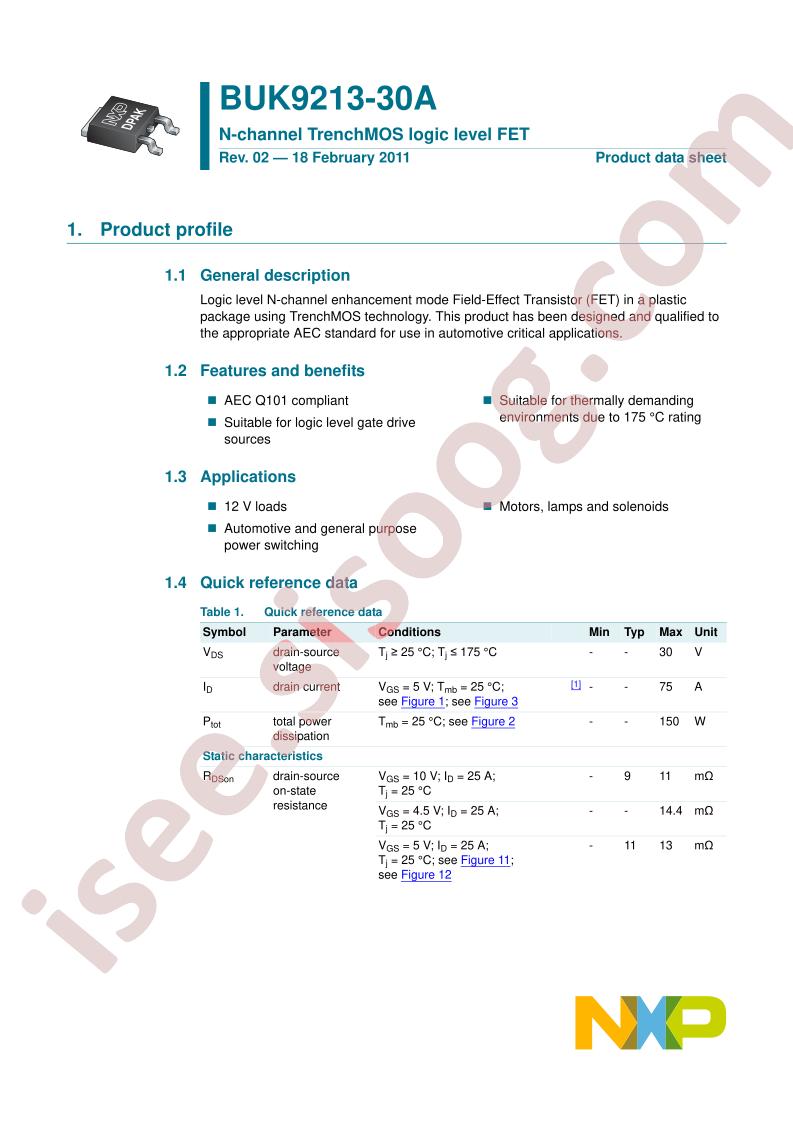

BUK9213-30A Datasheet

مشخصات

  • Manufacturer: NXP USA Inc.
  • Series: TrenchMOS™
  • Packaging: Tape & Reel (TR)
  • Part Status: Obsolete
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 30V
  • Current - Continuous Drain (Id) @ 25°C: 55A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Rds On (Max) @ Id, Vgs: 11mOhm @ 25A, 10V
  • Vgs(th) (Max) @ Id: 2V @ 1mA
  • Gate Charge (Qg) (Max) @ Vgs: 37nC @ 5V
  • Vgs (Max): ±15V
  • Input Capacitance (Ciss) (Max) @ Vds: 2852pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 150W (Tc)
  • Operating Temperature: -55°C ~ 175°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: DPAK
  • Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Base Part Number: BUK92
  • detail: N-Channel 30V 55A (Tc) 150W (Tc) Surface Mount DPAK
