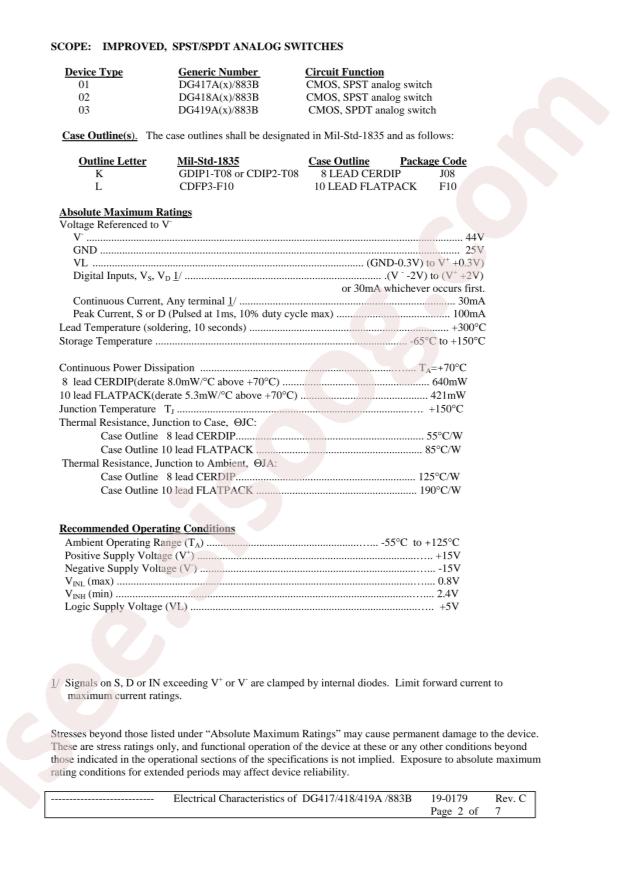

- دیتاشیت DG419AK/883B
DG419AK/883B دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | DG419AK/883B |
|---|---|
| حجم فایل | 83.217 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 5 |
دانلود دیتاشیت DG419AK/883B |
دانلود دیتاشیت |
|---|
سایر مستندات
DG417-19 12 pages
DG41xAx/883B 5 pages
مشخصات فنی
- RoHS: true
- Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
- Datasheet: Analog Devices Inc./Maxim Integrated DG419AK/883B
- Switch Circuit: -
- Package: CDIP-8
- Manufacturer: Analog Devices Inc./Maxim Integrated
- Multiplexer/Demultiplexer Circuit: 2:1
- Part Status: Active
- Charge Injection: 3pC
- -3db Bandwidth: -
- Operating Temperature: -55°C ~ 125°C (TA)
- Voltage - Supply, Dual (V±): ±4.5V ~ 20V
- Supplier Device Package: 8-CDIP
- Package / Case: 8-CDIP (0.300", 7.62mm)
- Switch Time (Ton, Toff) (Max): 175ns, 145ns
- Packaging: Tube
- Channel-to-Channel Matching (ΔRon): 3Ohm (Max)
- Voltage - Supply, Single (V+): 10V ~ 30V
- Channel Capacitance (CS(off), CD(off)): 8pF, 8pF
- Mounting Type: Through Hole
- Series: -
- Crosstalk: -85dB @ 1MHz
- Number of Circuits: 1
- Current - Leakage (IS(off)) (Max): 250pA
- Base Part Number: DG419
- On-State Resistance (Max): 30Ohm
- detail: 1 Circuit IC Switch 2:1 30Ohm 8-CDIP
