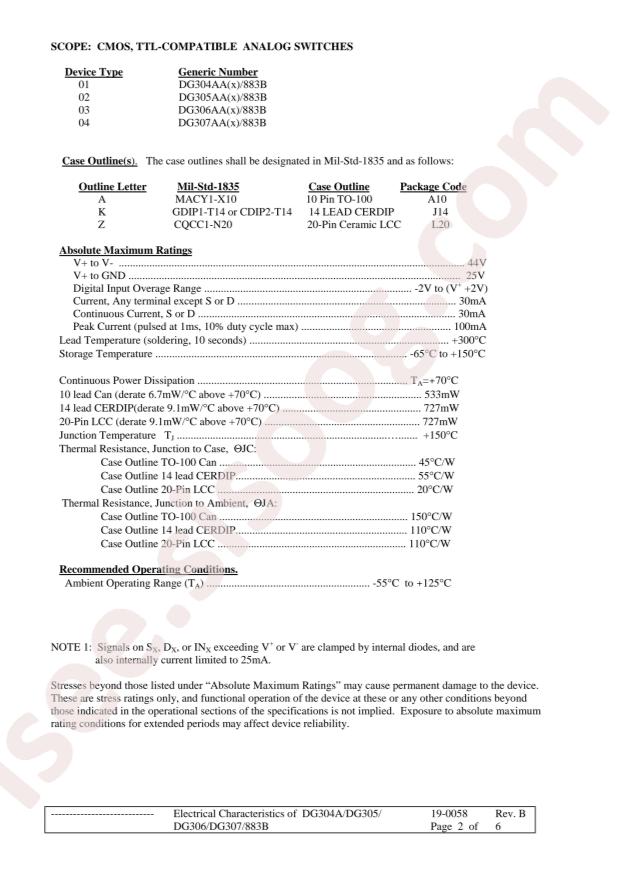

- دیتاشیت DG307AAK/883B
DG307AAK/883B دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | DG307AAK/883B |
|---|---|
| حجم فایل | 76.744 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 4 |
دانلود دیتاشیت DG307AAK/883B |
دانلود دیتاشیت |
|---|
سایر مستندات
DG304A-307A 9 pages
DG30xAAx/883B Milispecs 4 pages
مشخصات فنی
- RoHS: true
- Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers
- Datasheet: Analog Devices Inc./Maxim Integrated DG307AAK/883B
- Switch Circuit: -
- Package: CERDIP-14
- Manufacturer: Analog Devices Inc./Maxim Integrated
- Multiplexer/Demultiplexer Circuit: 2:1
- Part Status: Active
- Charge Injection: 12pC
- -3db Bandwidth: -
- Operating Temperature: -55°C ~ 125°C (TA)
- Voltage - Supply, Dual (V±): ±5V ~ 18V
- Supplier Device Package: 14-CERDIP
- Package / Case: 14-CDIP (0.300", 7.62mm)
- Switch Time (Ton, Toff) (Max): 250ns, 150ns
- Packaging: Tube
- Channel-to-Channel Matching (ΔRon): -
- Voltage - Supply, Single (V+): -
- Channel Capacitance (CS(off), CD(off)): 14pF, 14pF
- Mounting Type: Through Hole
- Series: -
- Crosstalk: -74dB @ 500kHz
- Number of Circuits: 2
- Current - Leakage (IS(off)) (Max): 1nA
- Base Part Number: DG307
- On-State Resistance (Max): 50Ohm
- detail: 2 Circuit IC Switch 2:1 50Ohm 14-CERDIP
