دیتاشیت VP2206N3-G-P003

VP2206

مشخصات دیتاشیت

نام دیتاشیت VP2206
حجم فایل 709.319 کیلوبایت
نوع فایل pdf
تعداد صفحات 6

دانلود دیتاشیت VP2206

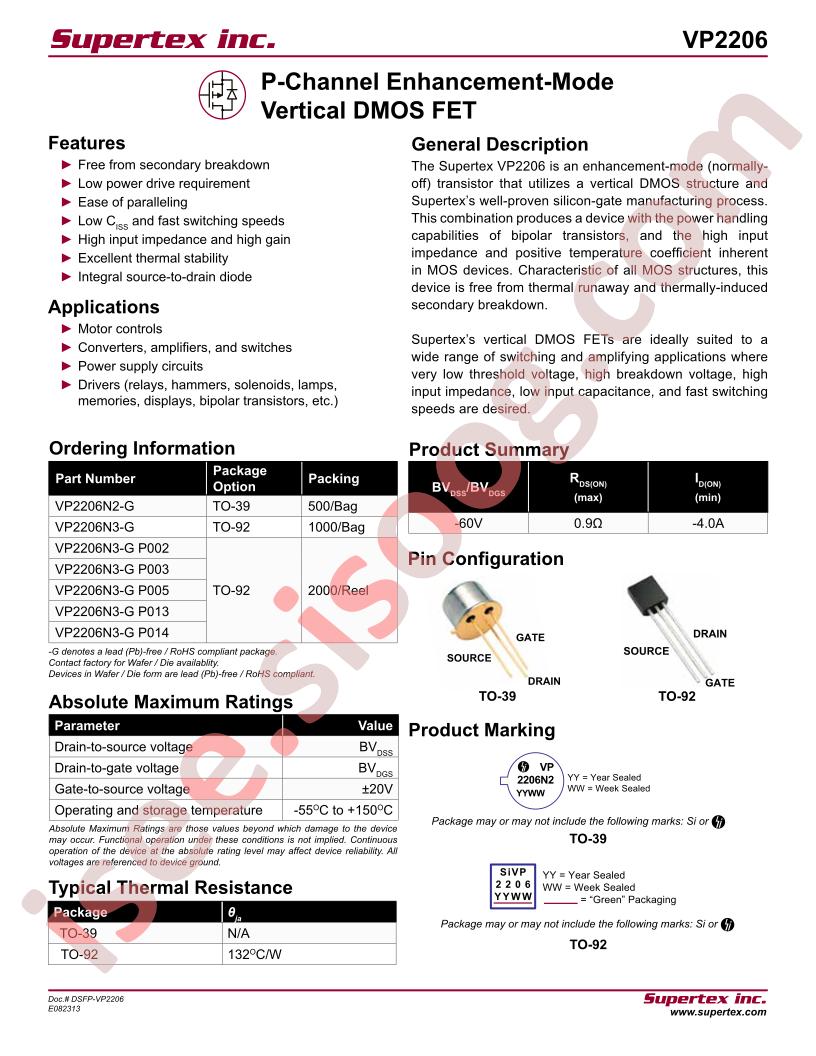

VP2206 Datasheet

مشخصات

  • RoHS: true
  • Type: P Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: Microchip Tech VP2206N3-G-P003
  • Operating Temperature: -55°C~+150°C@(Tj)
  • Power Dissipation (Pd): 740mW
  • Input Capacitance (Ciss@Vds): 450pF@25V
  • Continuous Drain Current (Id): 640mA
  • Gate Threshold Voltage (Vgs(th)@Id): 3.5V@10mA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 900mΩ@3.5A,10V
  • Package: TO-92-3
  • Manufacturer: Microchip Tech
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • FET Type: P-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 60V
  • Current - Continuous Drain (Id) @ 25°C: 640mA (Tj)
  • Drive Voltage (Max Rds On, Min Rds On): 5V, 10V
  • Rds On (Max) @ Id, Vgs: 900mOhm @ 3.5A, 10V
  • Vgs(th) (Max) @ Id: 3.5V @ 10mA
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 450pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 740mW (Tc)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-92-3
  • Package / Case: TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
  • detail: P-Channel 60V 640mA (Tj) 740mW (Tc) Through Hole TO-92-3
