MAX1693EUB+T دیتاشیت

MAX1693EUB+T

مشخصات دیتاشیت

نام دیتاشیت MAX1693EUB+T
حجم فایل 103.607 کیلوبایت
نوع فایل pdf
تعداد صفحات 9

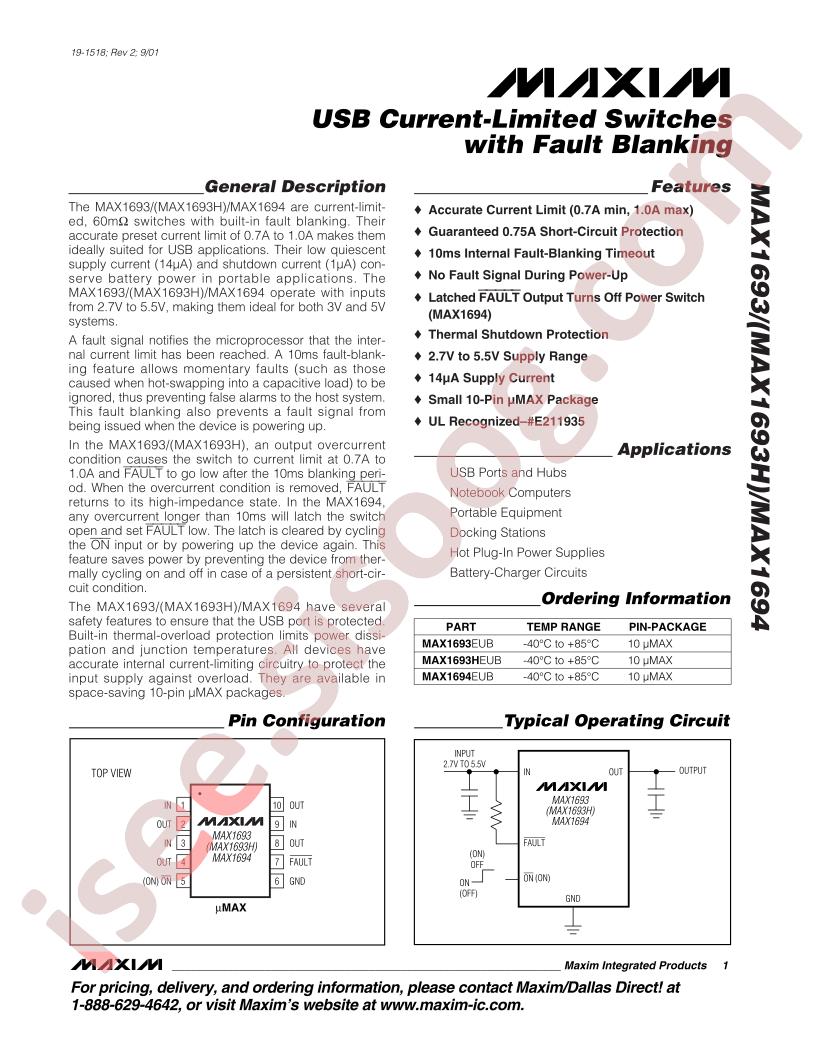

دانلود دیتاشیت MAX1693EUB+T

دانلود دیتاشیت

سایر مستندات

Part Numbering System 7 pages

MAX1693,94 9 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches
  • Datasheet: Analog Devices Inc./Maxim Integrated MAX1693EUB+T
  • Input Voltage: 2.7V~5.5V
  • Output Current: 700mA
  • Number of Outputs: 1
  • Resistor On-State: 60mΩ
  • Operating Temperature -: -40°C~+85°C
  • Package: UMAX-10
  • Manufacturer: Analog Devices Inc./Maxim Integrated
  • Ratio - Input:Output: 1:1
  • Rds On (Typ): 60mOhm
  • Output Configuration: High Side
  • Operating Temperature: -40°C ~ 85°C (TA)
  • Mounting Type: Surface Mount
  • Supplier Device Package: 10-uMAX
  • Switch Type: USB Switch
  • Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
  • Packaging: Cut Tape (CT)
  • Voltage - Load: 2.7V ~ 5.5V
  • Features: Status Flag
  • Input Type: Non-Inverting
  • Part Status: Active
  • Fault Protection: Current Limiting (Fixed), Over Temperature
  • Output Type: P-Channel
  • Series: -
  • Interface: On/Off
  • Current - Output (Max): 700mA
  • Base Part Number: MAX1693
  • Voltage - Supply (Vcc/Vdd): Not Required
  • detail: Power Switch/Driver 1:1 P-Channel 700mA 10-uMAX
