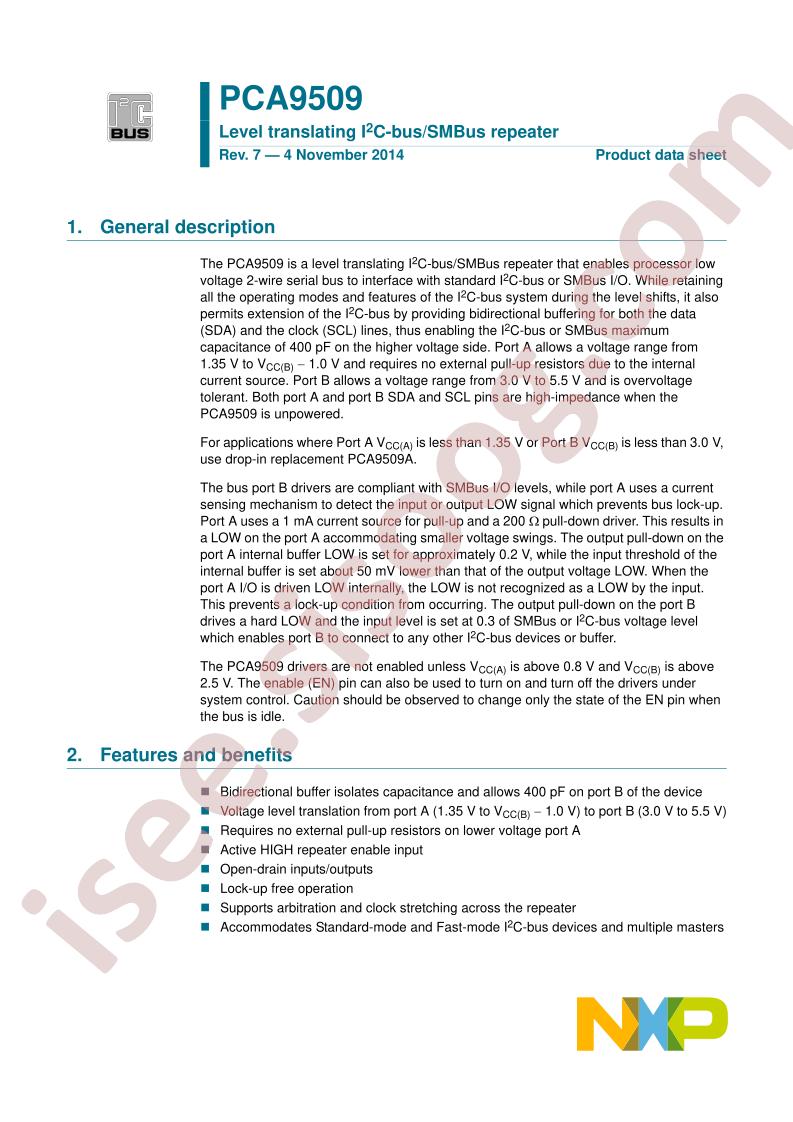

- Datasheet PCA9509
PCA9509DP/DG,118 Datasheet
Datasheet specifications
| Datasheet's name | PCA9509 |
|---|---|
| File size | 308.844 KB |
| File type | |
| Number of pages | 24 |
Download Datasheet PCA9509 |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: NXP USA Inc.
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Obsolete
- Type: Buffer, ReDriver
- Applications: I²C
- Input: 2-Wire Bus
- Output: 2-Wire Bus
- Data Rate (Max): 400kHz
- Number of Channels: 2
- Delay Time: -
- Signal Conditioning: -
- Capacitance - Input: 2pF
- Voltage - Supply: 3V ~ 5.5V
- Current - Supply: 3mA
- Operating Temperature: -40°C ~ 85°C
- Mounting Type: Surface Mount
- Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Supplier Device Package: 8-TSSOP
- Base Part Number: PCA95
- detail: Buffer, ReDriver 2 Channel 400kHz 8-TSSOP
