MIC69301,02,03 دیتاشیت

MIC69301,02,03

مشخصات دیتاشیت

نام دیتاشیت MIC69301,02,03
حجم فایل 442.938 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

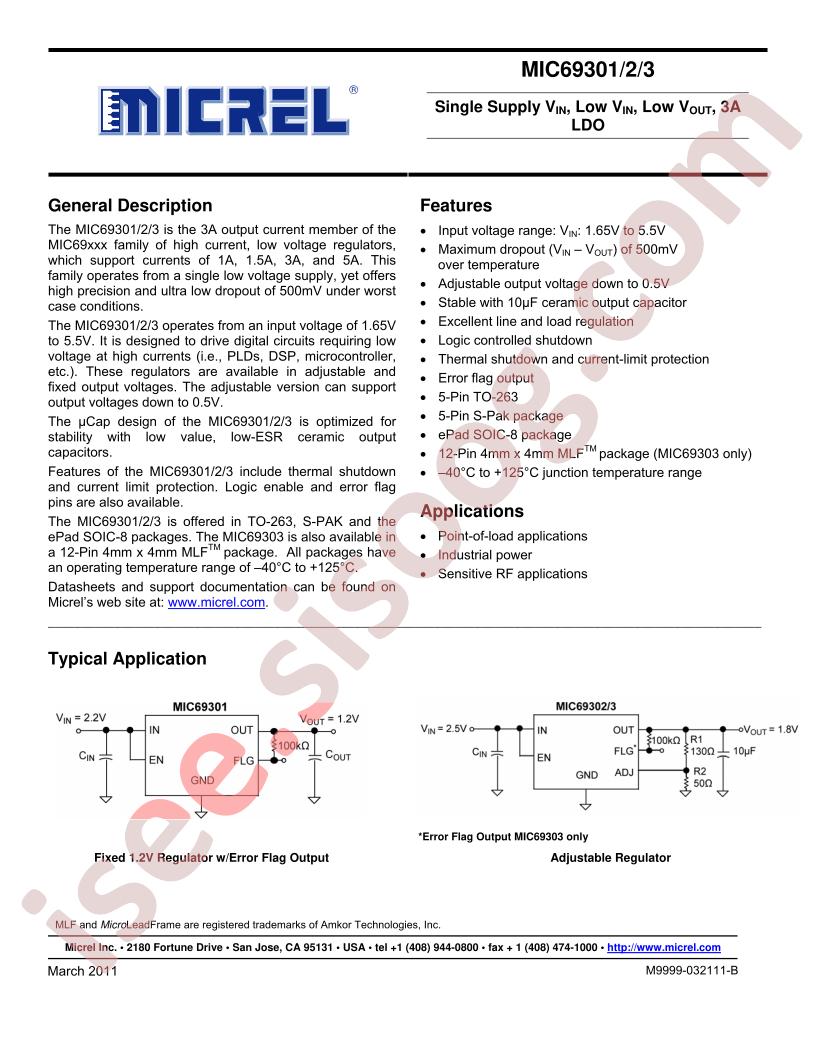

دانلود دیتاشیت MIC69301,02,03

دانلود دیتاشیت

سایر مستندات

MIC69303YML-TR 13 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Linear Voltage Regulators (LDO)
  • Datasheet: Microchip Tech MIC69301-1.2YME-TR
  • Output Current: 3A
  • Output Voltage: 1.2V
  • Dropout Voltage: 0.5V@(3A)
  • Output Polarity: positive
  • Number of Outputs: 1
  • Maximum Input Voltage: 5.5V
  • Operating Temperature: -40°C~+125°C
  • Quiescent Current (Ground Current): 5mA
  • Package: SOIC-8-EP
  • Manufacturer: Microchip Tech
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Active
  • Output Configuration: Positive
  • Output Type: Fixed
  • Number of Regulators: 1
  • Voltage - Input (Max): 5.5V
  • Voltage - Output (Min/Fixed): 1.2V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 0.5V @ 3A
  • Current - Output: 3A
  • Current - Quiescent (Iq): 5mA
  • Current - Supply (Max): 75mA
  • PSRR: -
  • Control Features: Enable, Error Flag
  • Protection Features: Over Current, Over Temperature
  • Mounting Type: Surface Mount
  • Package / Case: 8-SOIC (0.154", 3.90mm Width) Exposed Pad
  • Supplier Device Package: 8-SOIC-EP
  • Base Part Number: MIC69301-1.2
  • detail: Linear Voltage Regulator IC 1 Output 3A 8-SOIC-EP
