دیتاشیت MIC5236-2.5YMM-TR
مشخصات دیتاشیت
| نام دیتاشیت | MIC5236 |
|---|---|
| حجم فایل | 249.439 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 12 |
دانلود دیتاشیت MIC5236 |

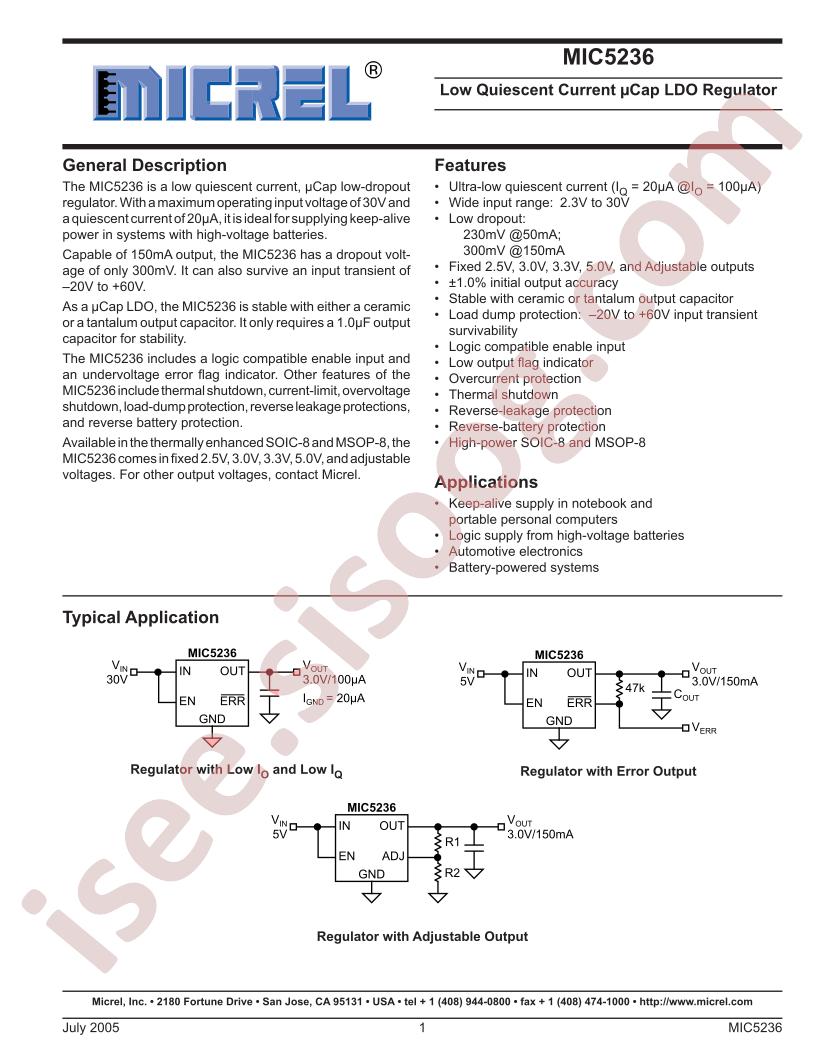

MIC5236 Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Power Supply Chip/Linear Voltage Regulators (LDO)
- Datasheet: Microchip Tech MIC5236-2.5YMM-TR
- Output Current: 150mA
- Output Voltage: 2.5V
- Dropout Voltage: 0.5V@(150mA)
- Output Polarity: positive
- Number of Outputs: 1
- Maximum Input Voltage: 35V
- Operating Temperature: -40°C~+125°C
- Quiescent Current (Ground Current): 30uA
- Package: MSOP-8
- Manufacturer: Microchip Tech
- Series: -
- Packaging: Tape & Reel (TR)
- Part Status: Active
- Output Configuration: Positive
- Output Type: Fixed
- Number of Regulators: 1
- Voltage - Input (Max): 30V
- Voltage - Output (Min/Fixed): 2.5V
- Voltage - Output (Max): -
- Voltage Dropout (Max): 0.5V @ 150mA
- Current - Output: 150mA
- Current - Quiescent (Iq): 30µA
- Current - Supply (Max): 5mA
- PSRR: -
- Control Features: Enable
- Protection Features: Load Dump, Over Current, Over Temperature, Over Voltage, Reverse Polarity
- Mounting Type: Surface Mount
- Package / Case: 8-TSSOP, 8-MSOP (0.118", 3.00mm Width)
- Supplier Device Package: 8-MSOP
- Base Part Number: MIC5236-2.5
- detail: Linear Voltage Regulator IC 1 Output 150mA 8-MSOP
