دیتاشیت PIC18F65K40-E/MR
مشخصات دیتاشیت
| نام دیتاشیت | PIC18(L)F65/66K40 Datasheet |
|---|---|
| حجم فایل | 6567.239 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 872 |

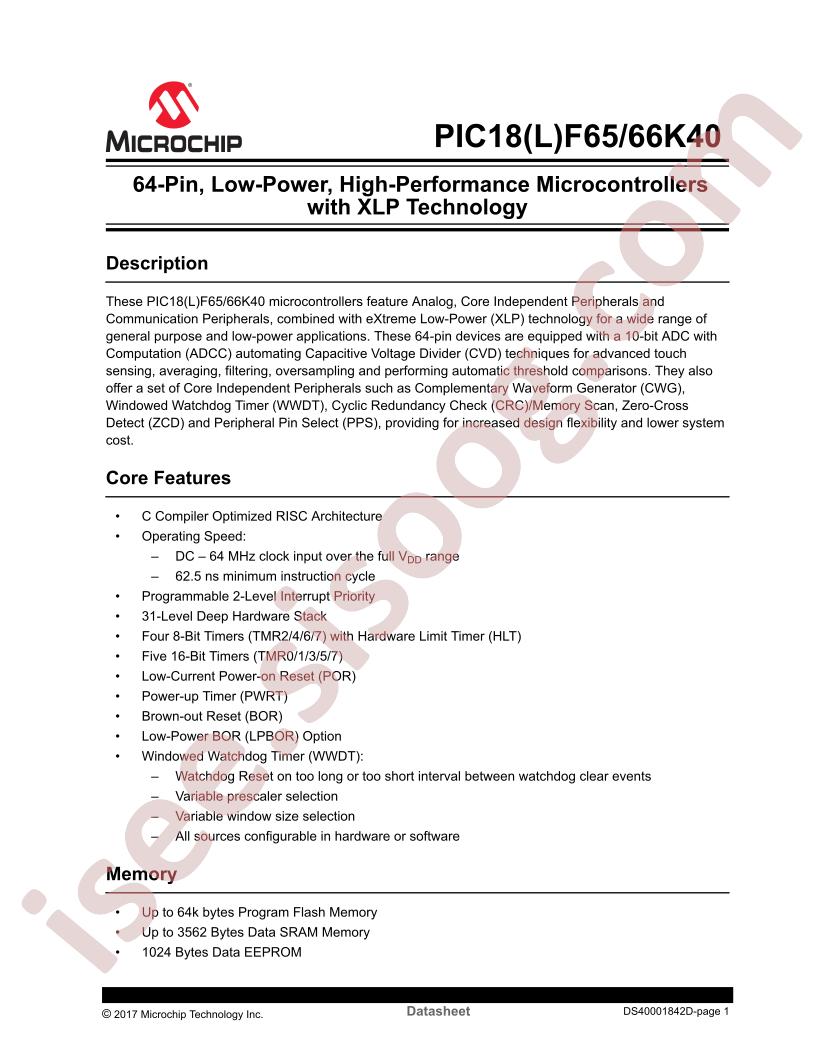

دانلود دیتاشیت PIC18(L)F65/66K40 Datasheet |
PIC18(L)F65/66K40 Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- EEPROM: -
- CPU Core: PIC
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: -
- Watchdog: -
- ADC (Bit): 10bit
- DAC (Bit): 5bit
- Datasheet: Microchip Tech PIC18F65K40-E/MR
- PWM (Bit): -
- Real-Time Clock: -
- CPU Maximum Speed: 64MHz
- GPIO Ports Number: 60
- Low-Voltage Detect: -
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: PWM;WDT
- Program Memory Type: FLASH
- Direct Memory Access: -
- Program Storage Size: 16KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 2.3V~5.5V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+125°C
- Secure Digital Input and Output: -
- Package: QFN-64-EP(9x9)
- Manufacturer: Microchip Tech
- Series: PIC® XLP™ 18K
- Packaging: Tube
- Part Status: Active
- Core Processor: PIC
- Core Size: 8-Bit
- Speed: 64MHz
- Connectivity: I²C, LINbus, SPI, UART/USART
- Peripherals: Brown-out Detect/Reset, POR, PWM, WDT
- Number of I/O: 60
- Program Memory Size: 32KB (16K x 16)
- EEPROM Size: 1K x 8
- Voltage - Supply (Vcc/Vdd): 2.3V ~ 5.5V
- Data Converters: A/D 45x10b; D/A 1x5b
- Oscillator Type: Internal
- Operating Temperature: -40°C ~ 125°C (TA)
- Mounting Type: Surface Mount
- Package / Case: 64-VFQFN Exposed Pad
- Supplier Device Package: 64-VQFN (9x9)
- Base Part Number: PIC18F65K40
- detail: PIC PIC® XLP™ 18K Microcontroller IC 8-Bit 64MHz 32KB (16K x 16) FLASH 64-VQFN (9x9)
