دیتاشیت NX3L2267GU-Q100X

NX3L2267-Q100

مشخصات دیتاشیت

نام دیتاشیت NX3L2267-Q100
حجم فایل 273.084 کیلوبایت
نوع فایل pdf
تعداد صفحات 22

دانلود دیتاشیت NX3L2267-Q100

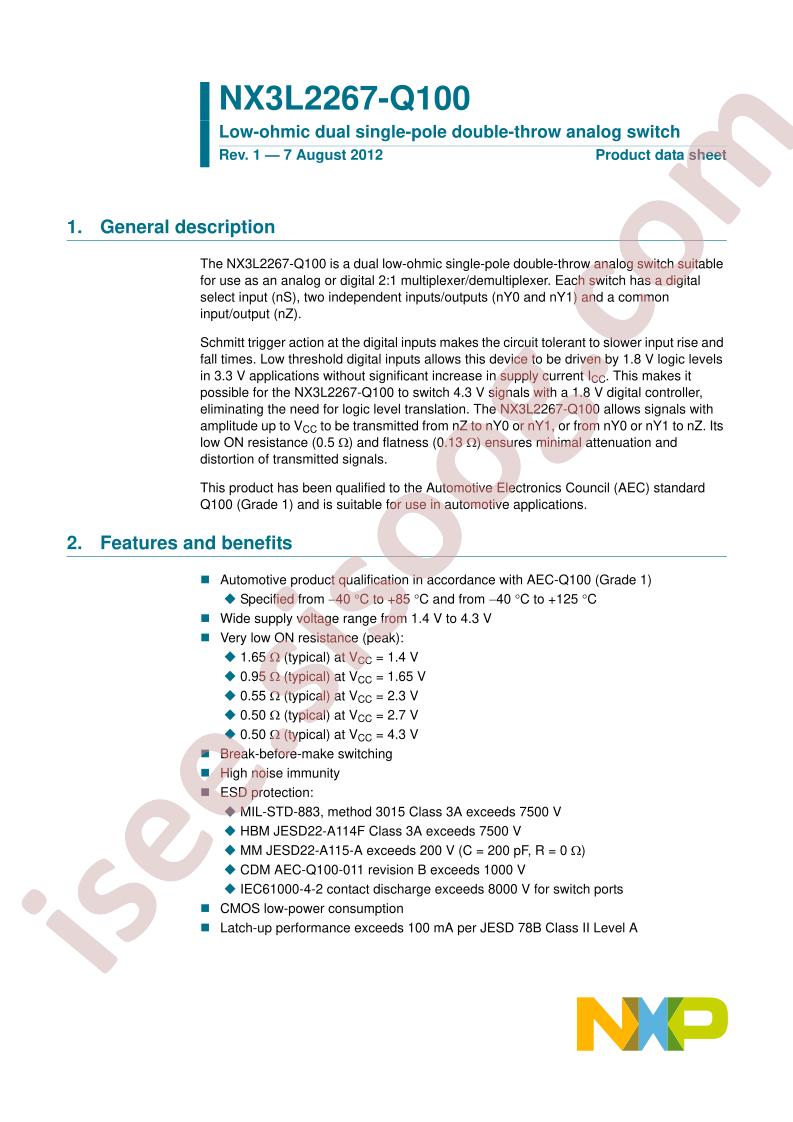

NX3L2267-Q100 Datasheet

مشخصات

  • Manufacturer: NXP USA Inc.
  • Series: Automotive, AEC-Q100
  • Packaging: Tape & Reel (TR)
  • Part Status: Obsolete
  • Switch Circuit: SPDT
  • Multiplexer/Demultiplexer Circuit: 2:1
  • Number of Circuits: 2
  • On-State Resistance (Max): 750mOhm
  • Channel-to-Channel Matching (ΔRon): 90mOhm
  • Voltage - Supply, Single (V+): 1.4V ~ 4.3V
  • Voltage - Supply, Dual (V±): -
  • Switch Time (Ton, Toff) (Max): 40ns, 20ns
  • -3db Bandwidth: 60MHz
  • Charge Injection: 37pC
  • Channel Capacitance (CS(off), CD(off)): 35pF
  • Current - Leakage (IS(off)) (Max): 10nA
  • Crosstalk: -90dB @ 100kHz
  • Operating Temperature: -40°C ~ 125°C (TA)
  • Mounting Type: Surface Mount
  • Package / Case: 10-XFQFN
  • Supplier Device Package: 10-XQFN (1.4x1.8)
  • Base Part Number: NX3
  • detail: 2 Circuit IC Switch 2:1 750mOhm 10-XQFN (1.4x1.8)
