دیتاشیت LD6915LX/1815PH

LD6915 Series

مشخصات دیتاشیت

نام دیتاشیت LD6915 Series
حجم فایل 930.781 کیلوبایت
نوع فایل pdf
تعداد صفحات 25

دانلود دیتاشیت LD6915 Series

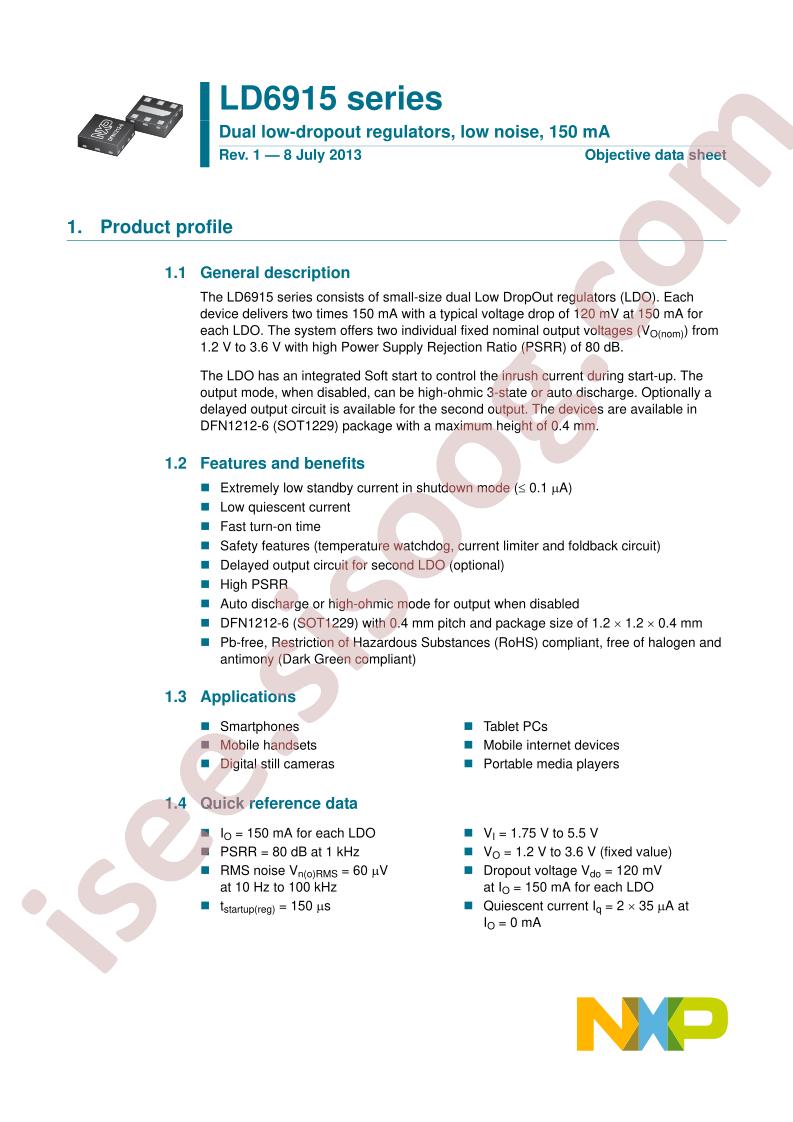

LD6915 Series Datasheet

مشخصات

  • Manufacturer: NXP USA Inc.
  • Series: -
  • Packaging: Tape & Reel (TR)
  • Part Status: Obsolete
  • Output Configuration: Positive
  • Output Type: Fixed
  • Number of Regulators: 2
  • Voltage - Input (Max): 5.5V
  • Voltage - Output (Min/Fixed): 1.5V, 1.8V
  • Voltage - Output (Max): -
  • Voltage Dropout (Max): 0.12V @ 150mA (Typ), 0.12V @ 150mA (Typ)
  • Current - Output: 150mA, 150mA
  • Current - Quiescent (Iq): 50µA
  • PSRR: 80dB (1kHz)
  • Control Features: Enable
  • Protection Features: Over Current, Over Temperature, Soft Start
  • Operating Temperature: -40°C ~ 85°C
  • Mounting Type: Surface Mount

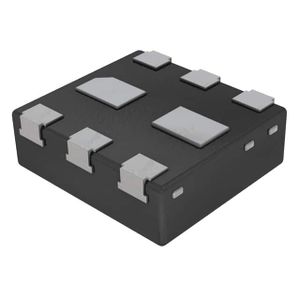

  • Package / Case: 6-XFDFN Exposed Pad
  • Supplier Device Package: 6-DFN (1.2x1.2)
  • Base Part Number: LD691
  • detail: Linear Voltage Regulator IC 2 Output 150mA, 150mA 6-DFN (1.2x1.2)
