MAX9109EXT+T دیتاشیت

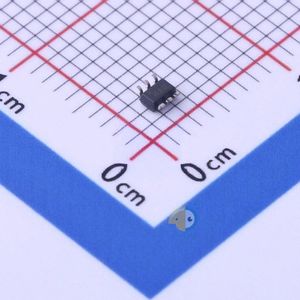

MAX9109EXT+T

مشخصات دیتاشیت

نام دیتاشیت MAX9109EXT+T
حجم فایل 100.714 کیلوبایت
نوع فایل pdf
تعداد صفحات 9

مشاهده دیتاشیت MAX9109EXT+T

دانلود دیتاشیت

سایر مستندات

Part Numbering System 7 pages

MAX9107-09 9 pages

مشخصات فنی

  • RoHS: true
  • Category: Operational Amplifier/Comparator/Comparators
  • Datasheet: Analog Devices Inc./Maxim Integrated MAX9109EXT+T
  • Output Type: TTL
  • Supply Voltage: 4.5V~5.5V
  • Number of Elements: -
  • Operating Temperature: -40°C~+85°C
  • Input Bias Current (Ib): 0.125uA
  • Input Offset Voltage (Vos): 1.6mV
  • Input Hysteresis Voltage (Vhys): 2mV
  • Common Mode Rejection Ratio (CMRR): 86.02dB
  • Package: SC-70-6
  • Manufacturer: Analog Devices Inc./Maxim Integrated
  • Voltage - Supply, Single/Dual (±): 4.5V ~ 5.5V
  • Voltage - Input Offset (Max): 1.6mV @ 5V
  • Hysteresis: 2mV
  • Supplier Device Package: SC-70-6
  • CMRR, PSRR (Typ): 86.02dB CMRR, 86.02dB PSRR
  • Propagation Delay (Max): 25ns
  • Part Status: Discontinued at Digi-Key
  • Type: with Latch
  • Series: -
  • Current - Quiescent (Max): 700µA
  • Base Part Number: MAX9109
  • Current - Output (Typ): -
  • Package / Case: 6-TSSOP, SC-88, SOT-363
  • Packaging: Cut Tape (CT)
  • Mounting Type: Surface Mount
  • Current - Input Bias (Max): 0.125µA @ 5V
  • detail: Comparator with Latch TTL SC-70-6
