دیتاشیت MIC38C42-1YM

MIC38C42, 43, 44, 45

مشخصات دیتاشیت

نام دیتاشیت MIC38C42, 43, 44, 45
حجم فایل 351.486 کیلوبایت
نوع فایل pdf
تعداد صفحات 11

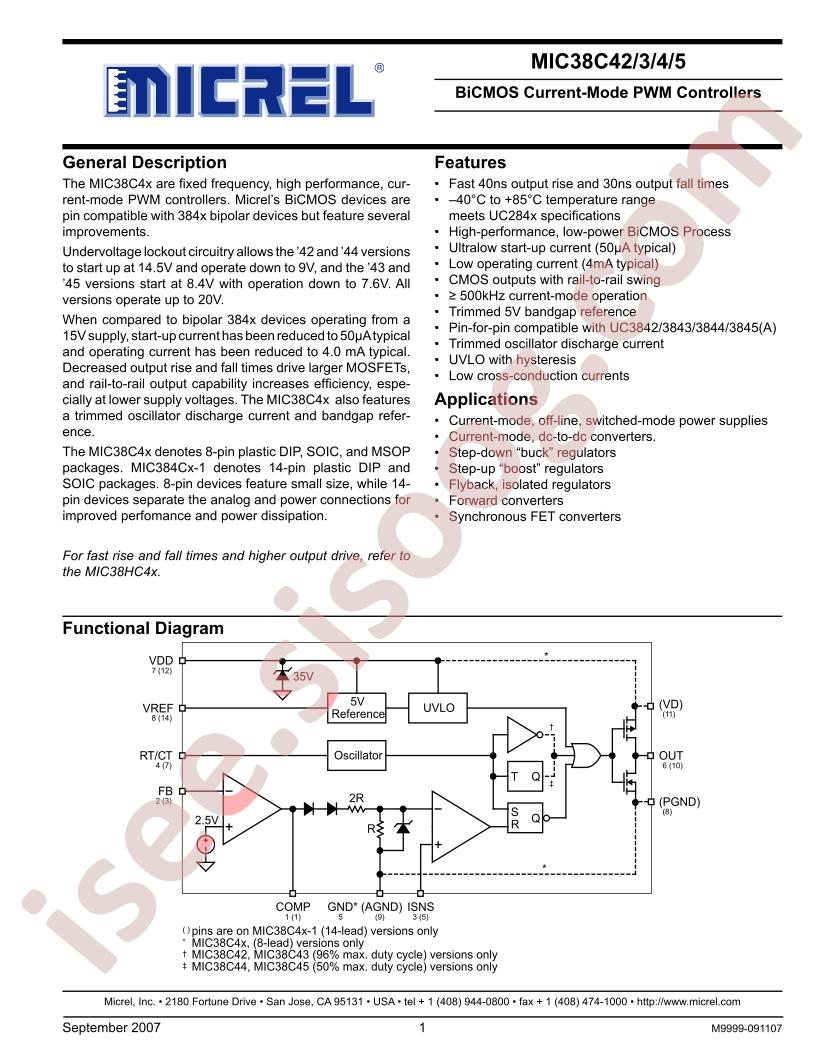

دانلود دیتاشیت MIC38C42, 43, 44, 45

MIC38C42, 43, 44, 45 Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/DC-DC Controllers
  • Datasheet: Microchip Tech MIC38C42-1YM
  • Package: SOP-14
  • Manufacturer: Microchip Tech
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Output Isolation: Isolated
  • Internal Switch(s): Yes
  • Voltage - Breakdown: -
  • Topology: Boost, Buck, Flyback, Forward
  • Voltage - Start Up: 14.5V
  • Voltage - Supply (Vcc/Vdd): 9V ~ 20V
  • Duty Cycle: 96%
  • Frequency - Switching: 500kHz
  • Fault Protection: -
  • Control Features: Frequency Control
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Package / Case: 14-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 14-SOIC
  • Mounting Type: Surface Mount
  • Base Part Number: MIC38C42
  • detail: Converter Offline Boost, Buck, Flyback, Forward Topology 500kHz 14-SOIC
