MAX20327EWL+T دیتاشیت

مشخصات دیتاشیت

دانلود دیتاشیت MAX20327EWL+T	دانلود دیتاشیت

RoHS: true
Category: Communication Interface Chip/UART/485/232/Analog Switches / Multiplexers

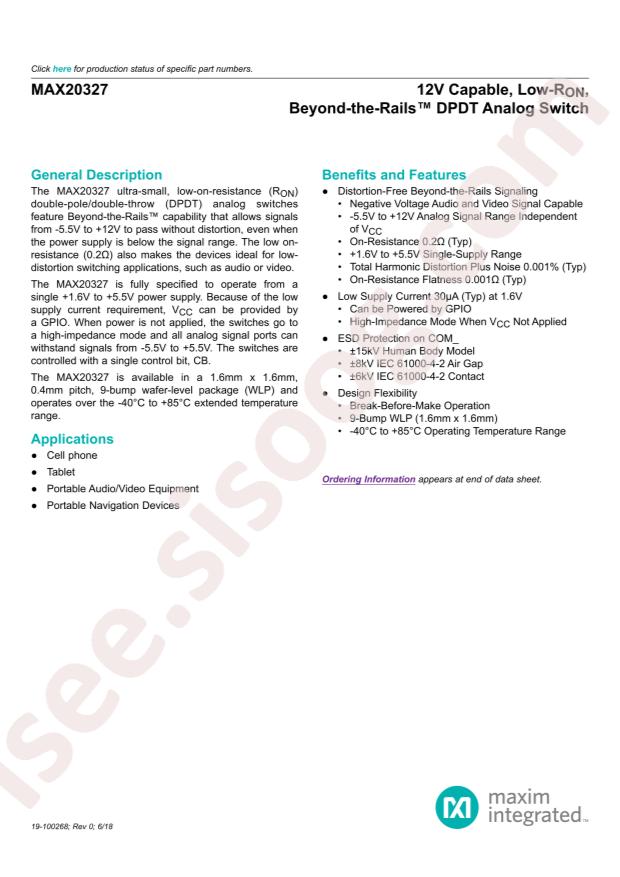

Datasheet: Analog Devices Inc./Maxim Integrated MAX20327EWL+T
Turn-on time: 300us
Turn-off time: 30us
Supply Voltage: 1.6V~5.5V
Switch Circuit: DPDT(DPDT)
Number of Channels: 1
On-State Resistance (Max): 350mΩ
Package: WLP-9(1.6x1.6)
Manufacturer: Analog Devices Inc./Maxim Integrated
Multiplexer/Demultiplexer Circuit: 1:1
Part Status: Active
Charge Injection: -
-3db Bandwidth: 100MHz
Operating Temperature: -40°C ~ 85°C
Voltage - Supply, Dual (V±): -
Supplier Device Package: 9-WLP (1.6x1.6)
Package / Case: 9-WFBGA, WLBGA
Switch Time (Ton, Toff) (Max): 300µs, 30µs
Packaging: Tape & Reel (TR)
Channel-to-Channel Matching (ΔRon): 2mOhm
Voltage - Supply, Single (V+): 1.6V ~ 5.5V
Channel Capacitance (CS(off), CD(off)): 4pF, 4pF
Mounting Type: Surface Mount
Series: -
Crosstalk: -100dB @ 100kHz
Number of Circuits: 1
Current - Leakage (IS(off)) (Max): 1µA
Base Part Number: MAX203
detail: 1 Circuit IC Switch 1:1 350mOhm 9-WLP (1.6x1.6)
