MAX20075-76 Abridged Datasheet 数据手册
数据手册规格
| 数据手册名称 | MAX20075-76 Abridged Datasheet |
|---|---|
| 文件大小 | 962.559 千字节 |
| 文件类型 | |
| 页数 | 16 |
下载数据手册 MAX20075-76 Abridged Datasheet |
下载数据手册 |
|---|
其他文档
MAX20075ATCA/V+ 16 pages
技术规格
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down
- Datasheet: Analog Devices Inc./Maxim Integrated MAX20076BATCB/VY+T
- Output Type: 可调和固定
- Input Voltage: 3.5V~36V
- Output Voltage: 1V~10V
- Number of Outputs: 1
- Switching Frequency: 2.1MHz
- Output Current (Max): 1.2A
- Operating Temperature: -40°C~+125°C
- Synchronous Rectification: Yes

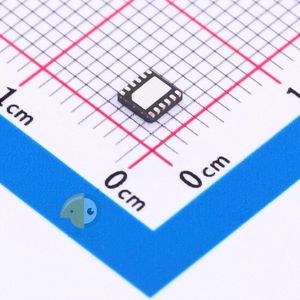

- Package: DFN-12(3x3)
- Manufacturer: Analog Devices Inc./Maxim Integrated
- Voltage - Input (Max): 36V
- Voltage - Input (Min): 3.5V
- Output Configuration: Positive
- Supplier Device Package: 12-TDFN-EP (3x3)
- Package / Case: 12-WFDFN Exposed Pad
- Frequency - Switching: 2.1MHz
- Current - Output: 1.2A
- Part Status: Active
- Series: Automotive, AEC-Q100
- Voltage - Output (Max): 10V
- Base Part Number: MAX20076
- Mounting Type: Surface Mount, Wettable Flank
- Synchronous Rectifier: Yes
- Voltage - Output (Min/Fixed): 1V
- Packaging: Tape & Reel (TR)
- detail: Buck Switching Regulator IC Positive Programmable (Fixed) 1V 1 Output 1.2A 12-WFDFN Exposed Pad
