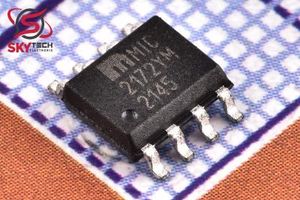

دیتاشیت MIC2172YM-TR

مشخصات دیتاشیت

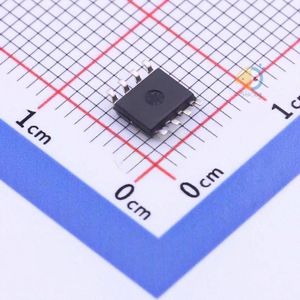

دانلود دیتاشیت MIC2172, MIC3172	MIC2172, MIC3172 Datasheet

Manufacturer: Microchip Technology
Series: -
Packaging: Cut Tape (CT)
Part Status: Discontinued at Digi-Key
Function: Step-Up, Step-Up/Step-Down
Output Configuration: Positive or Negative, Isolation Capable
Topology: Boost, Cuk, Flyback, Forward Converter
Output Type: Adjustable
Number of Outputs: 1
Voltage - Input (Min): 3V
Voltage - Input (Max): 40V
Voltage - Output (Min/Fixed): 1.24V
Voltage - Output (Max): 65V (Switch)
Current - Output: 1.25A (Switch)
Frequency - Switching: 100kHz
Synchronous Rectifier: No
Operating Temperature: -40°C ~ 85°C (TA)
Mounting Type: Surface Mount
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package: 8-SOIC
Base Part Number: MIC2172
detail: Boost, Cuk, Flyback, Forward Converter Switching Regulator IC Positive or Negative, Isolation Capable Adjustable 1.24V 1 Output 1.25A (Switch) 8-SOIC (0.154", 3.90mm Width)
