دیتاشیت TEA1720BT/1J

مشخصات دیتاشیت

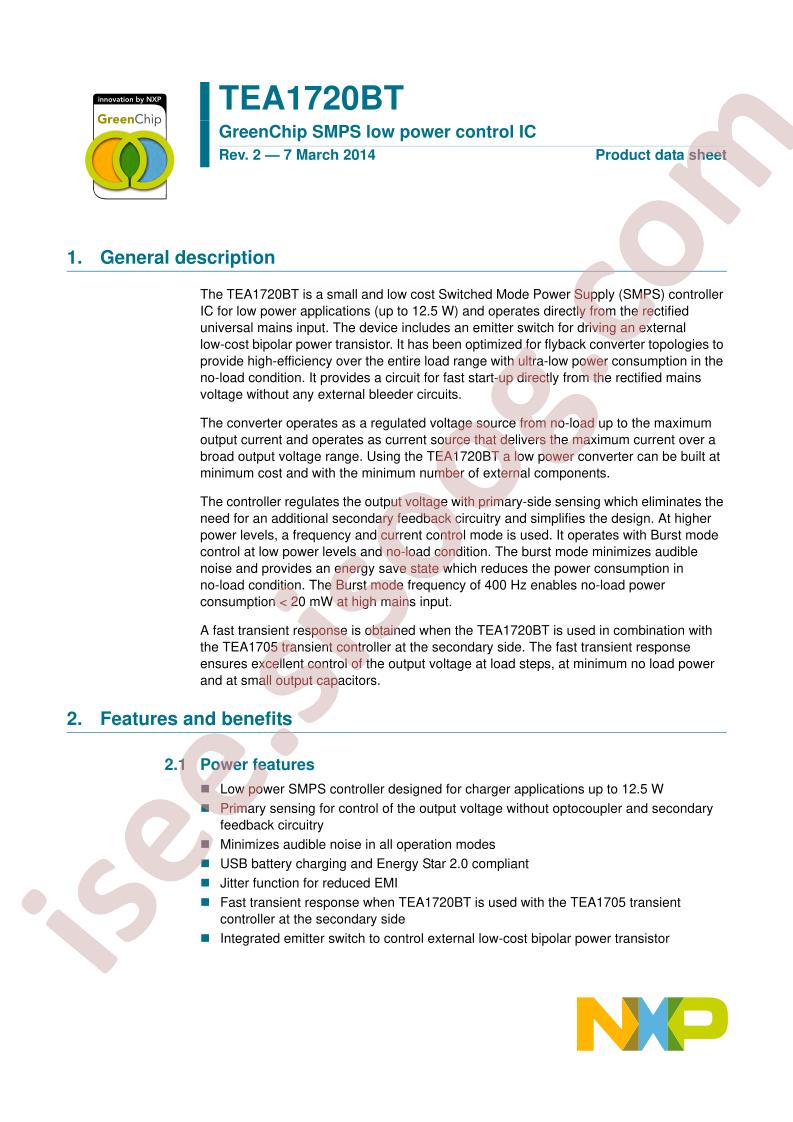

دانلود دیتاشیت TEA1720BT	TEA1720BT Datasheet

Manufacturer: NXP USA Inc.
Series: GreenChip™
Packaging: Tape & Reel (TR)
Part Status: Obsolete
Output Isolation: Isolated
Internal Switch(s): No
Voltage - Breakdown: -
Topology: Flyback
Voltage - Start Up: 17V
Voltage - Supply (Vcc/Vdd): 8.5V ~ 40V
Duty Cycle: 75%
Frequency - Switching: 23kHz ~ 52kHz
Power (Watts): 12.5W
Fault Protection: Open Circuit, Over Temperature, Over Voltage, Short Circuit
Control Features: -
Operating Temperature: -40°C ~ 85°C (TA)
Package / Case: 8-SOIC (0.154", 3.90mm Width)
Supplier Device Package: 8-SO
Mounting Type: Surface Mount
Base Part Number: TEA172
detail: Converter Offline Flyback Topology 23kHz ~ 52kHz 8-SO
