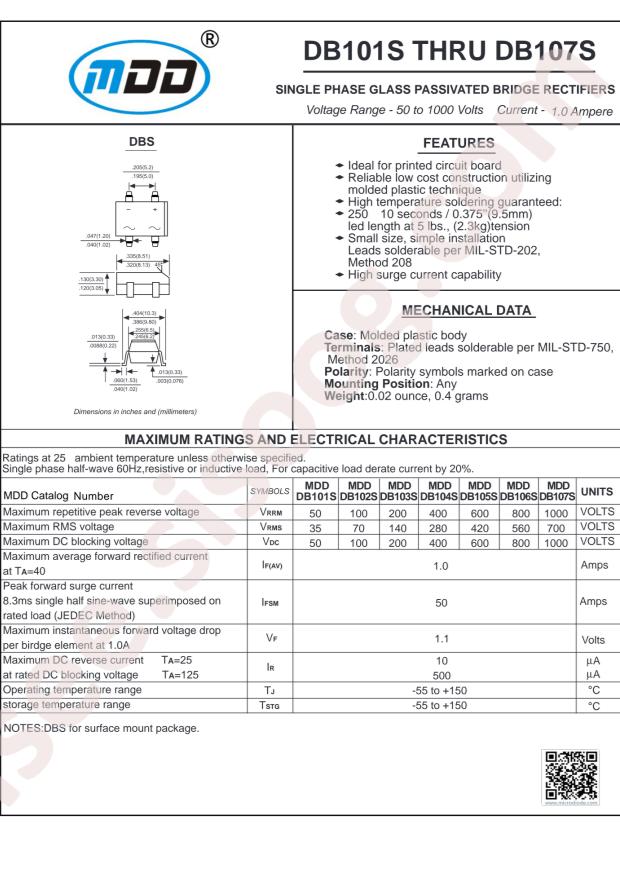

DB105S 数据手册
技术规格
- RoHS: true
- Category: Diodes/Bridge Rectifiers
- Datasheet: LRC DB105S
- Reverse Voltage (Vr): 600V
- Operating Temperature: -55°C~+150°C@(Tj)
- Forward Voltage (Vf@If): 1.1V
- Peak Forward Surge Current: 50A
- Reverse Leakage Current (Ir): 5uA
- Average Rectified Current (Io): 1A
- Package: SMD-4P
- Manufacturer: LRC
