WSP9435 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
WSP9435
|
|
حجم فایل
|
71.241
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-

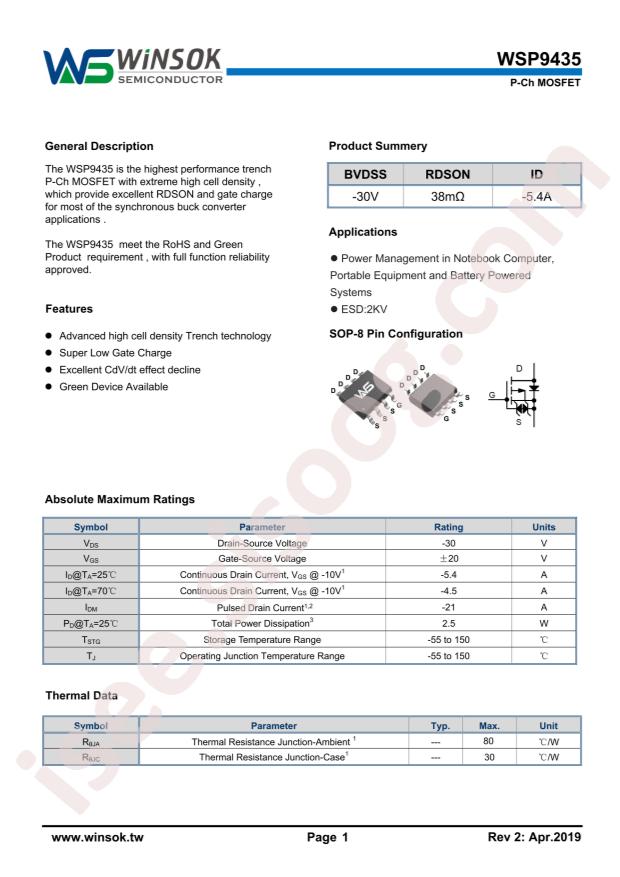

Datasheet:
Winsok Semicon WSP9435
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
2.5W
-
Total Gate Charge (Qg@Vgs):
13nC@10V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
642pF@15V
-
Continuous Drain Current (Id):
5.4A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.5V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
66pF@15V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
38mΩ@10V,5.4A
-

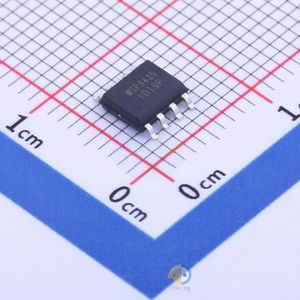

Package:
SOP-8
-
Manufacturer:
Winsok Semicon
-
Part id:
1247749
