技术规格
- RoHS: true
- Type: N Channel
- Category: Triode/MOS Tube/Transistor/MOSFETs

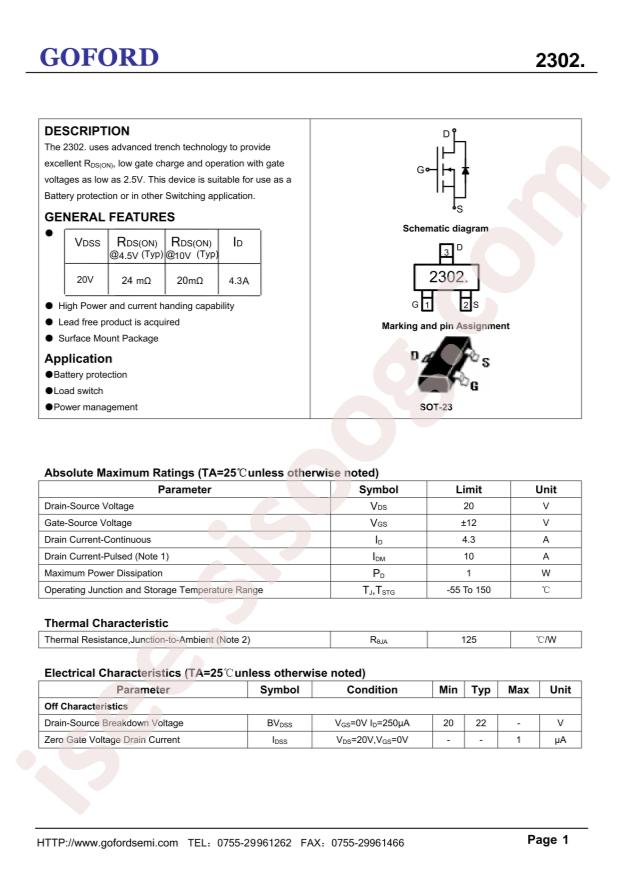

- Datasheet: GOFORD 2302
- Operating Temperature: -55°C~+150°C@(Tj)
- Power Dissipation (Pd): 1W
- Total Gate Charge (Qg@Vgs): 10nC@4.5V
- Drain Source Voltage (Vdss): 20V
- Input Capacitance (Ciss@Vds): 300pF@10V
- Continuous Drain Current (Id): 4.3A
- Gate Threshold Voltage (Vgs(th)@Id): 1.2V@250uA
- Drain Source On Resistance (RDS(on)@Vgs,Id): 30mΩ@10V,2.5A
- Package: SOT-23(TO-236)
- Manufacturer: GOFORD
- Part id: 182170
