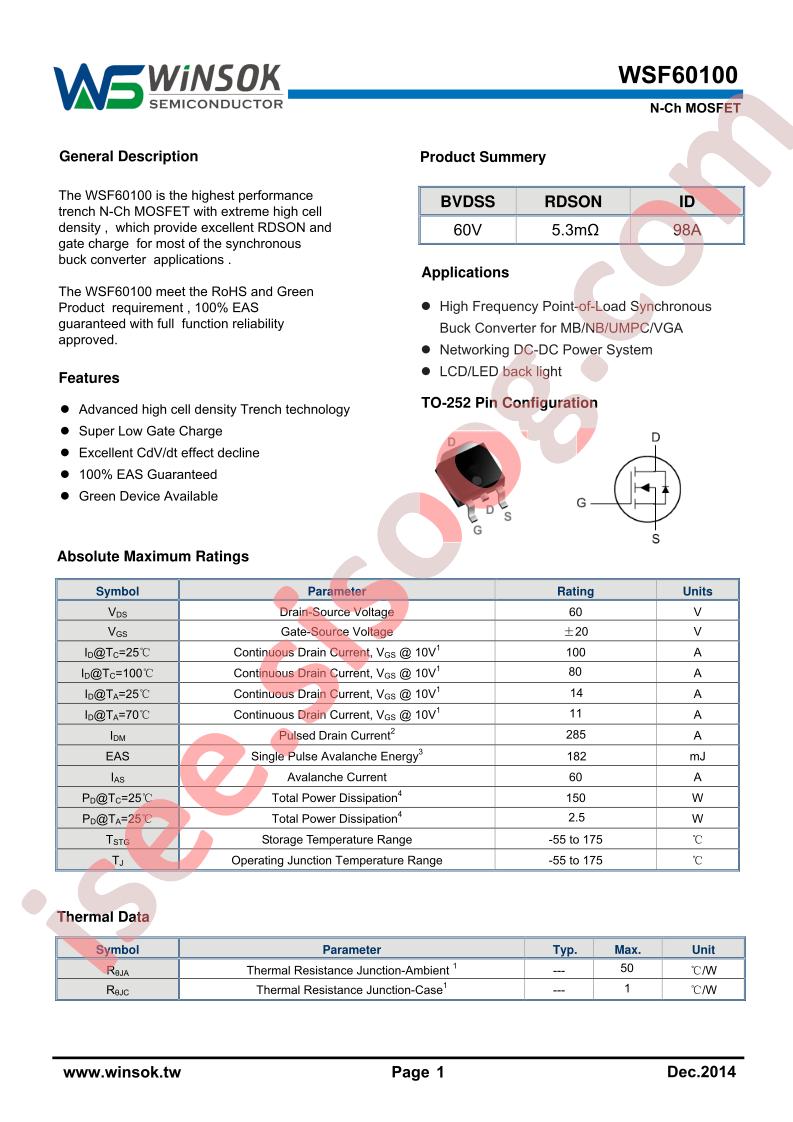

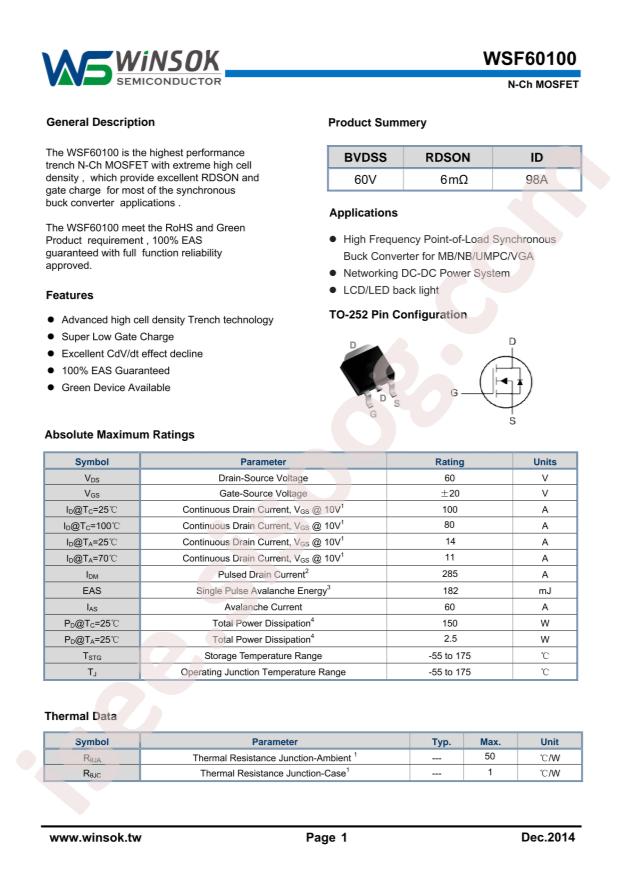

دیتاشیت WSF60100
مشخصات دیتاشیت
| نام دیتاشیت |
WSF60100
|
| حجم فایل |
594.689
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
5
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Winsok Semicon WSF60100
-
Operating Temperature:
-55°C~+175°C@(Tj)
-
Power Dissipation (Pd):
150W
-
Total Gate Charge (Qg@Vgs):
54nC@4.5V
-
Drain Source Voltage (Vdss):
60V
-
Input Capacitance (Ciss@Vds):
4.055nF@15V
-
Continuous Drain Current (Id):
100A
-
Gate Threshold Voltage (Vgs(th)@Id):
3V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
18pF@15V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
6mΩ@10V,20A
-
Package:
TO-252
-
Manufacturer:
Winsok Semicon
-
Part id:
1246491
