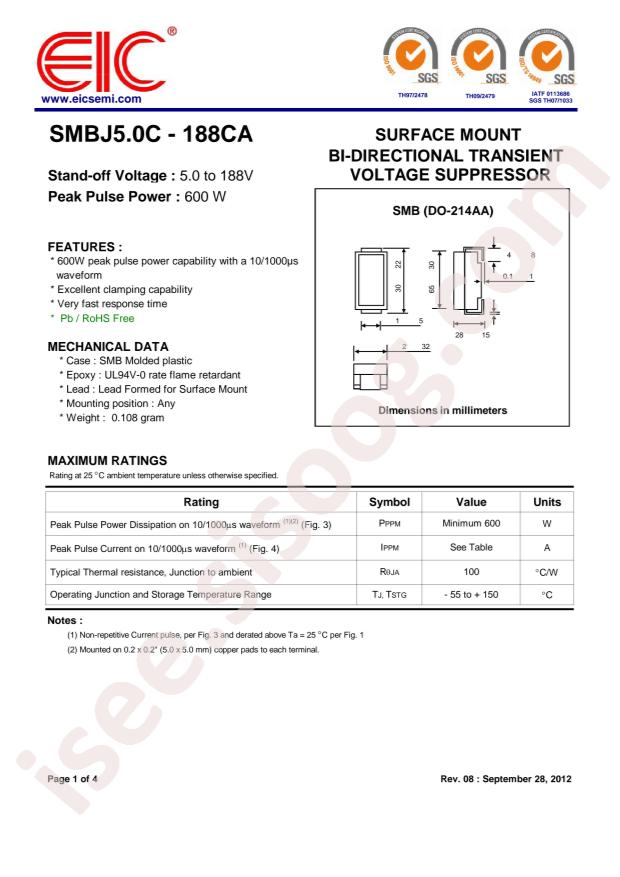

SMBJ90CA Datasheet

SMBJ90CA

Datasheet specifications

Datasheet's name SMBJ90CA
File size 67.383 KB
File type pdf
Number of pages 4

Download Datasheet SMBJ90CA

Download Datasheet

Other documentations

SMBJ24A 4 pages

SMBJ24A 5 pages

SMBJ24A 4 pages

SMBJ24A 5 pages

SMBJ12A 7 pages

SMBJ8.0A 6 pages

SMBJ18A 3 pages

SMBJ33CA 6 pages

SMBJ130A 6 pages

SMBJ7.5A 7 pages

SMBJ90CA 5 pages

Technical specifications

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/TVS
  • Datasheet: Shandong Jingdao Microelectronics SMBJ90CA
  • Breakdown Voltage: 100V
  • Maximum Clamping Voltage: 146V
  • Reverse Stand-Off Voltage (Vrwm): 90V
  • Peak Pulse Current (Ipp)@10/1000us: 4.1A
  • Package: SMB(DO-214AA)
  • Manufacturer: Shandong Jingdao Microelectronics
  • Reverse Leakage Current (Ir): 5uA
  • Peak Pulse Current (Ipp)@10/1000μs: 4.1A
  • Peak Pulse Power Dissipation (Ppp)@10/1000μs: 600W
  • Bidirectional Channels: 1
  • Peak Pulse Power Dissipation (Ppp)@10/1000us: 600W
  • Unidirectional Channels: 0
  • Part id: 981987
