ZXTC2061E6TA دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت ZXTC2061E6TA	دانلود دیتاشیت

RoHS: true
Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT

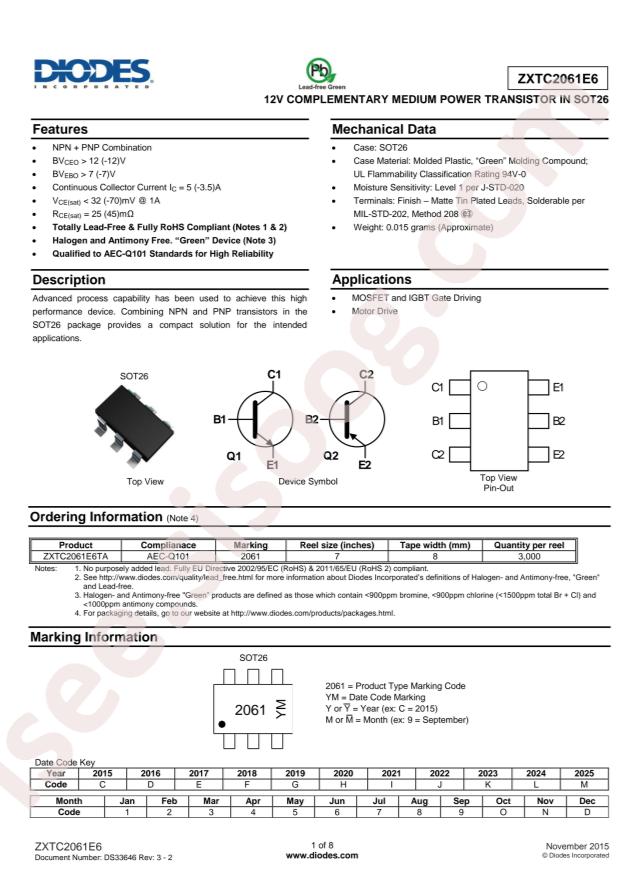

Datasheet: Diodes Incorporated ZXTC2061E6TA
Transistor Type: 1PCSNPN&1PCSPNP
Operating Temperature: -55°C~+150°C@(Tj)
Collector Current (Ic): 5A;3.5A
Power Dissipation (Pd): 1.1W
Transition Frequency (fT): 260MHz;310MHz
DC Current Gain (hFE@Ic,Vce): 390@5A,2V;100@3.5A,2V
Collector Cut-Off Current (Icbo): 50nA
Collector-Emitter Breakdown Voltage (Vceo): 12V
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 145mV@5A,100mA;150mV@3.5A,350mA

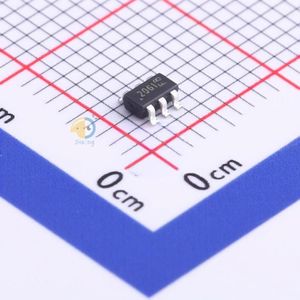

Package: SOT-26
Manufacturer: Diodes Incorporated
Part id: 250666
