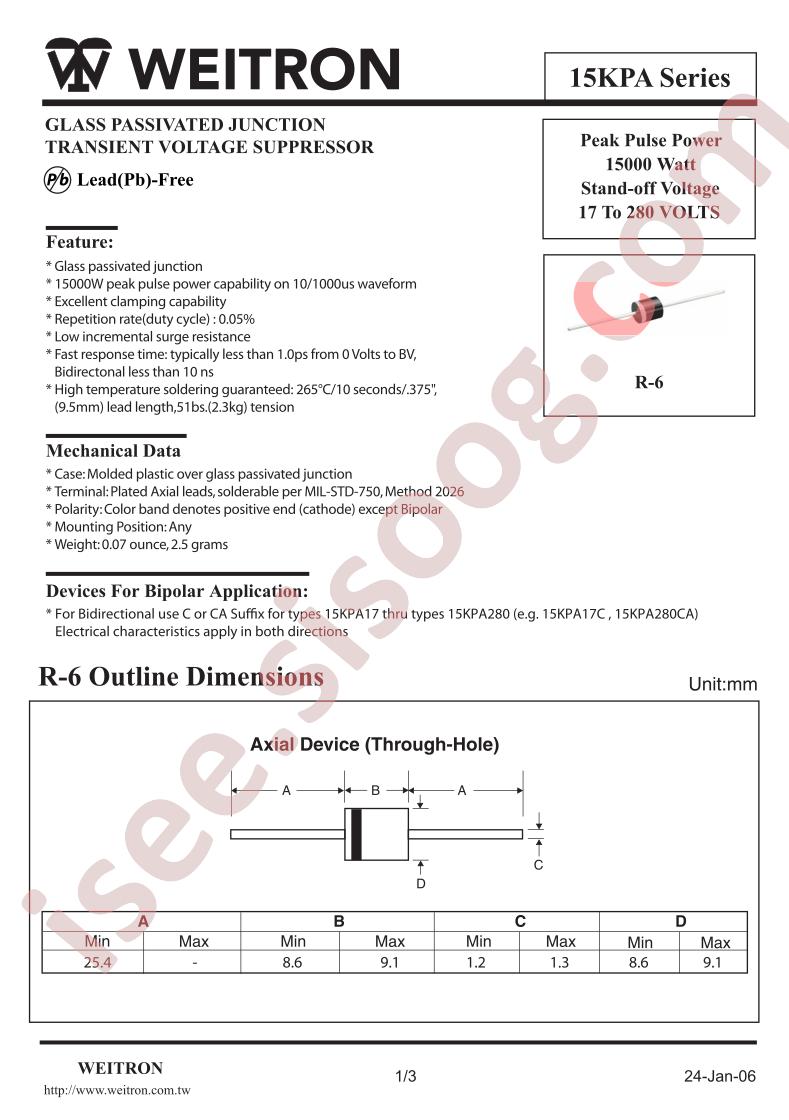

15KPA170CA Datasheet

15KPA170CA

Datasheet specifications

Datasheet's name 15KPA170CA
File size 422.506 KB
File type pdf
Number of pages 3

Download Datasheet 15KPA170CA

Download Datasheet

Other documentations

15KPA120A 6 pages

15KPA100A 3 pages

Technical specifications

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/TVS
  • Datasheet: Littelfuse 15KPA170CA
  • Breakdown Voltage: 189.9V
  • Bidirectional Channels: 1
  • Maximum Clamping Voltage: 272.7V
  • Reverse Leakage Current (Ir): 2uA
  • Reverse Stand-Off Voltage (Vrwm): 170V
  • Peak Pulse Current (Ipp)@10/1000us: 55.4A
  • Peak Pulse Power Dissipation (Ppp)@10/1000us: 15kW
  • Package: Plugin
  • Manufacturer: Littelfuse
  • Part id: 563967
