M8550 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
M8550
|
|
حجم فایل
|
54.948
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
Jiangsu Changjing Electronics Technology Co., Ltd. M8550
-
Transistor Type:
PNP
-
Collector Current (Ic):
800mA
-
Power Dissipation (Pd):
200mW
-
Collector-Emitter Breakdown Voltage (Vceo):
25V
-

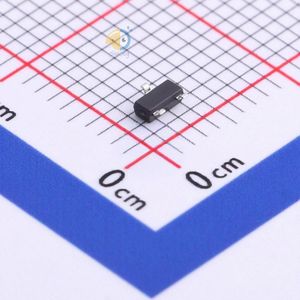

Package:
SOT-23
-
Manufacturer:
Jiangsu Changjing Electronics Technology Co., Ltd.
-
Operating Temperature:
+150°C@(Tj)
-
Transition Frequency (fT):
150MHz
-
DC Current Gain (hFE@Ic,Vce):
160@100mA,1V
-
Collector Cut-Off Current (Icbo):
100nA
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
500mV@800mA,80mA
-
Part id:
420110
