2SC945 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
2SC945
|
|
حجم فایل
|
82.872
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
4
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:

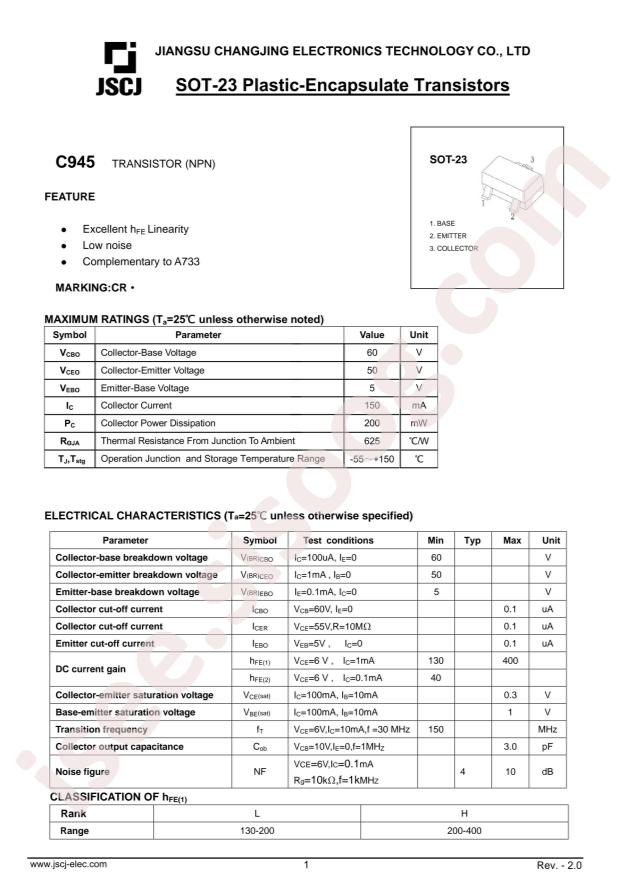

Jiangsu Changjing Electronics Technology Co., Ltd. 2SC945
-
Package:
SOT-23
-
Manufacturer:
Jiangsu Changjing Electronics Technology Co., Ltd.
-
Transistor Type:
NPN
-
Operating Temperature:
+150°C@(Tj)
-
Collector Current (Ic):
150mA
-
Power Dissipation (Pd):
250mW
-
Transition Frequency (fT):
250MHz
-
DC Current Gain (hFE@Ic,Vce):
90@1mA,6V
-
Collector Cut-Off Current (Icbo):
100nA
-
Collector-Emitter Breakdown Voltage (Vceo):
50V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
150mV@100mA,10mA
-
Part id:
260198
