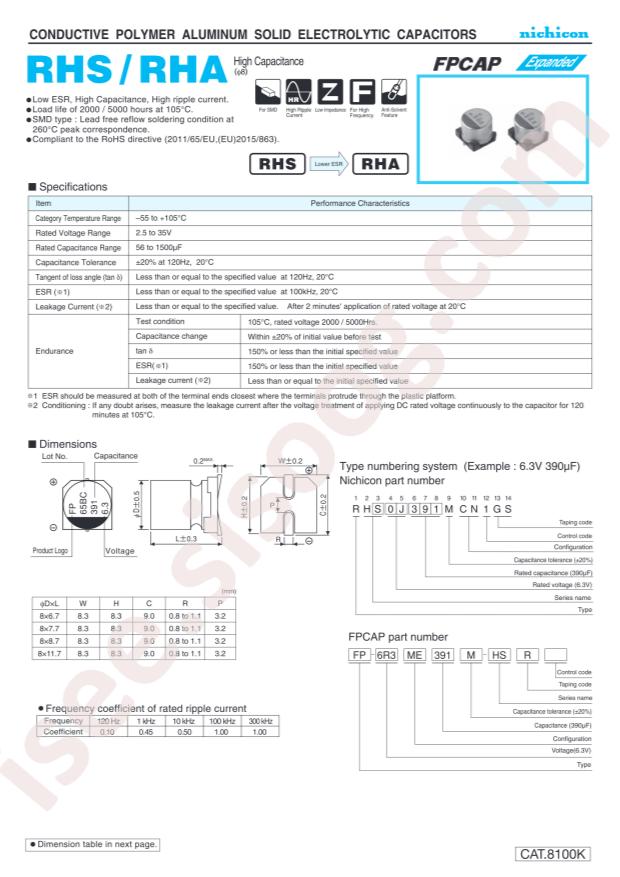

RHA0E102MCN1GS 数据手册
其他文档
RHA0E102MCN1GS 2 pages
技术规格
- L: 7.7mm
- φD: 8mm
- RoHS: true
- Type: Polymer
- Category: Capacitors/Solid Capacitors
- Datasheet: Nichicon RHA0E102MCN1GS
- Tolerance: ±20%
- Capacitance: 1000uF
- Lead Spacing: -
- Rated Voltage: 2.5V
- Ripple Current: 5000mA@100kHz
- Lifetime @ Temp: 2000hrs@105°C
- Operating Temperature: -55°C~+105°C
- Equivalent Series Resistance(ESR): 8mΩ@100kHz
- Package: SMD,8x7.7mm
- Manufacturer: Nichicon
- Part id: 1120724
