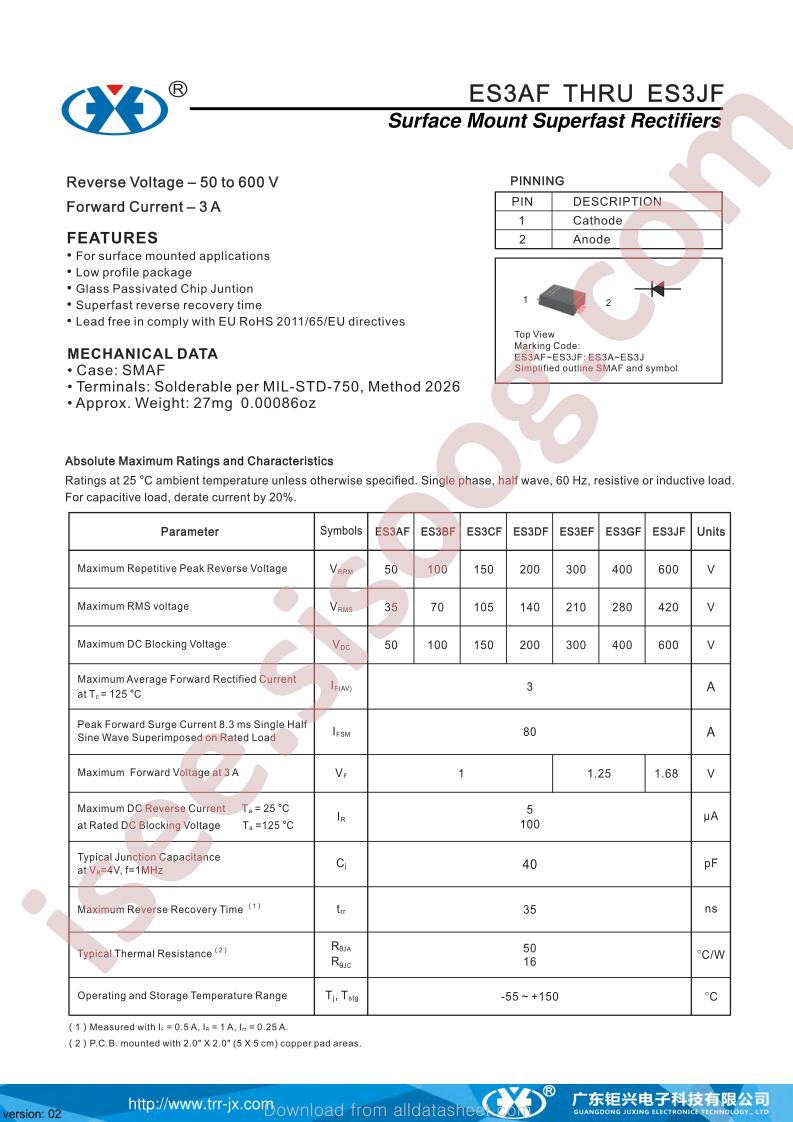

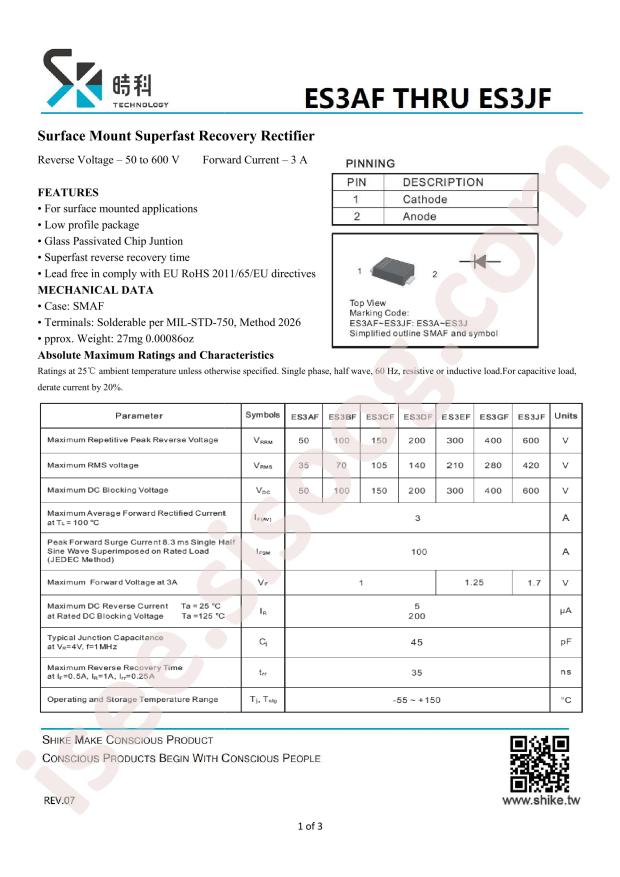

ES3AF 数据手册
技术规格
- RoHS: true
- Category: Diodes/Diodes - Fast Recovery Rectifiers
- Datasheet: Shandong Jingdao Microelectronics ES3AF
- Diode Configuration: Single
- Reverse Voltage (Vr): 50V
- Operating Temperature: -55°C~+150°C@(Tj)
- Forward Voltage (Vf@If): 1V@3A
- Reverse Leakage Current: 5uA@50V
- Reverse Recovery Time (trr): 35ns
- Average Rectified Current (Io): 3A

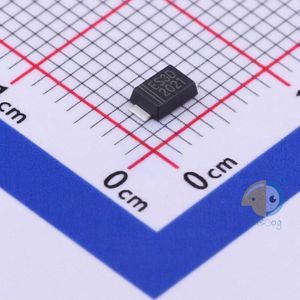

- Package: SMAF
- Manufacturer: Shandong Jingdao Microelectronics
- Part id: 1084868
