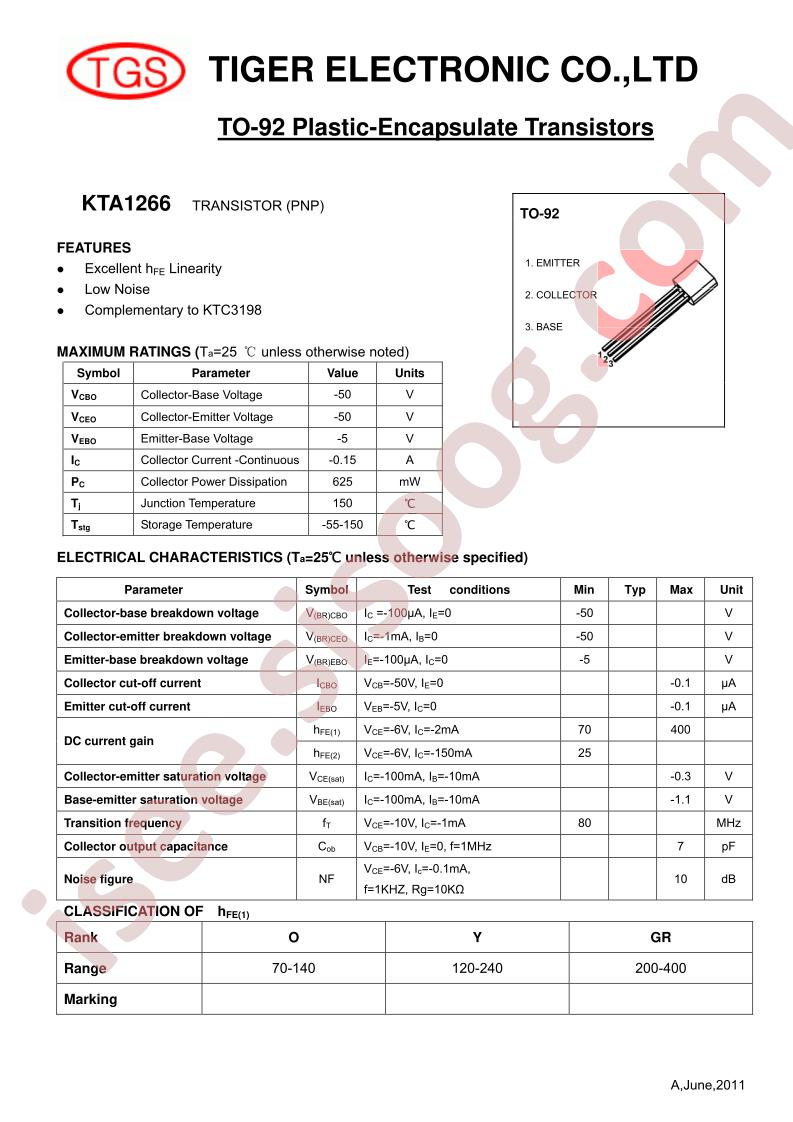

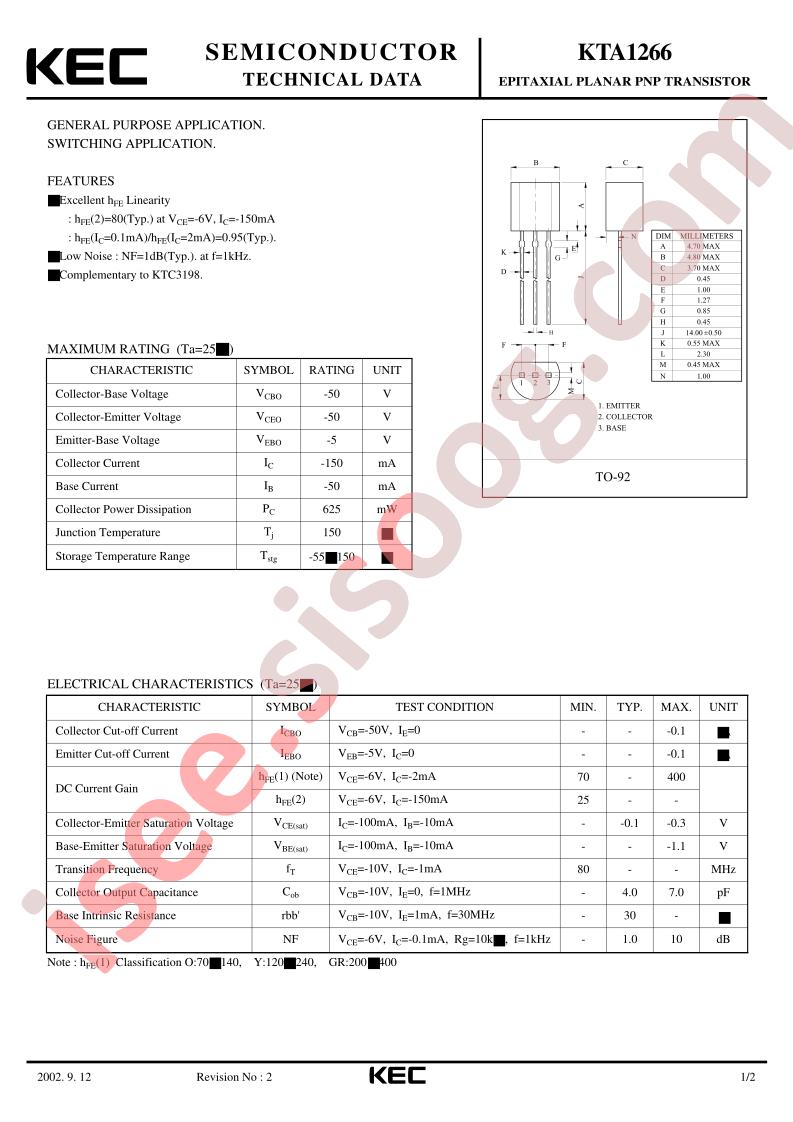

KTA1266 Datasheet

KTA1266

Datasheet specifications

Datasheet's name KTA1266
File size 44.584 KB
File type pdf
Number of pages 2

Download Datasheet KTA1266

Download Datasheet

Other documentations

KTA1266 1 pages

Technical specifications

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
  • Datasheet: Foshan Blue Rocket Elec KTA1266
  • Transistor Type: PNP
  • Operating Temperature: +150°C@(Tj)
  • Collector Current (Ic): 150mA
  • Power Dissipation (Pd): 625mW
  • Transition Frequency (fT): 80MHz
  • DC Current Gain (hFE@Ic,Vce): 70@2mA,6V
  • Collector Cut-Off Current (Icbo): 100nA
  • Collector-Emitter Breakdown Voltage (Vceo): 50V
  • Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 100mV@100mA,10mA
  • Package: TO-92L
  • Manufacturer: Foshan Blue Rocket Elec
  • Part id: 447270
