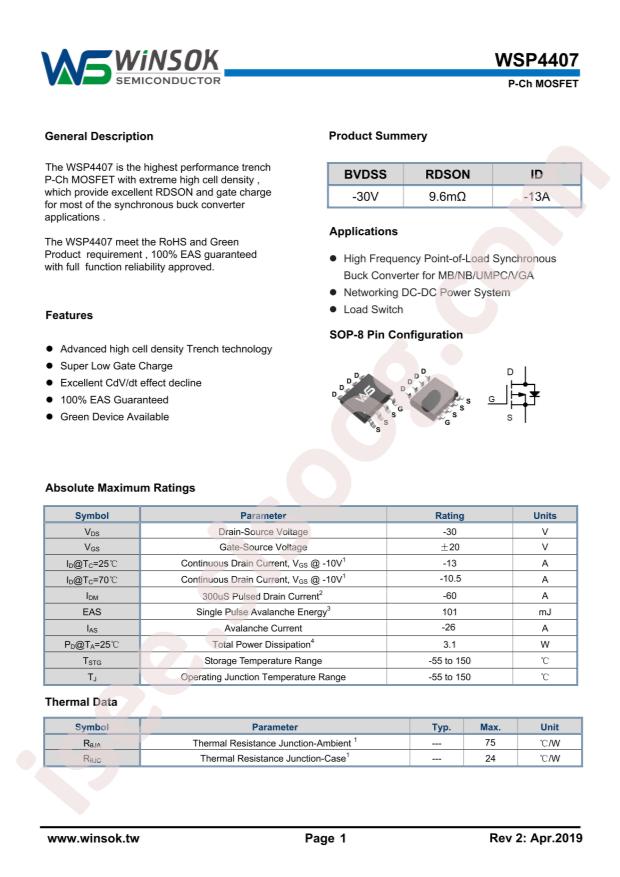

WSP4407 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
WSP4407
|
|
حجم فایل
|
74.752
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Type:
P Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Winsok Semicon WSP4407
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
3.1W
-
Total Gate Charge (Qg@Vgs):
31nC@4.5V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
1.55nF@15V
-
Continuous Drain Current (Id):
13A
-
Gate Threshold Voltage (Vgs(th)@Id):
2V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
245pF@15V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
9.6mΩ@10V,13A
-

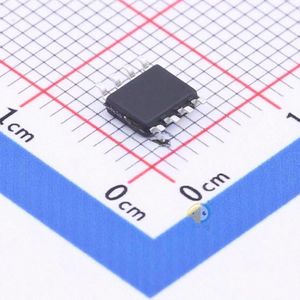

Package:
SOP-8
-
Manufacturer:
Winsok Semicon
-
Part id:
1246887
