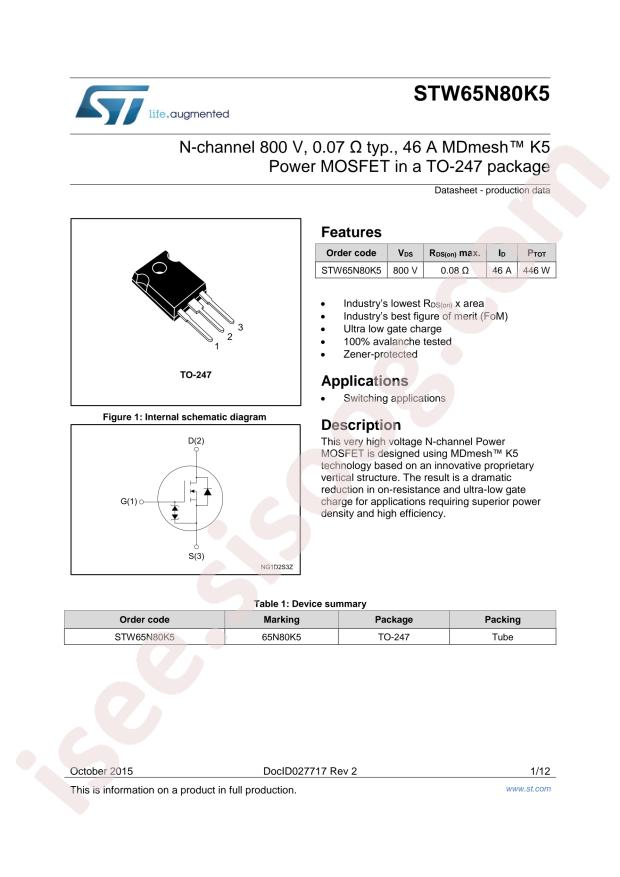

STW65N80K5 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STW65N80K5
|
|
حجم فایل
|
57.209
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
12
|
مشخصات فنی
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STW65N80K5
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
446W
-
Total Gate Charge (Qg@Vgs):
92nC@10V
-
Drain Source Voltage (Vdss):
800V
-
Input Capacitance (Ciss@Vds):
3230pF@100V
-
Continuous Drain Current (Id):
46A
-
Gate Threshold Voltage (Vgs(th)@Id):
5V@100uA
-
Reverse Transfer Capacitance (Crss@Vds):
3pF@100V
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
70mΩ@10V,23A
-

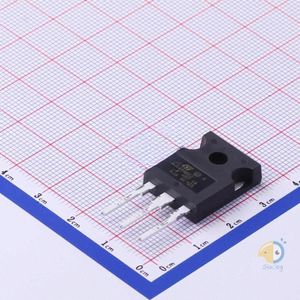

Package:
TO-247
-
Manufacturer:
STMicroelectronics
-
Part id:
797362
