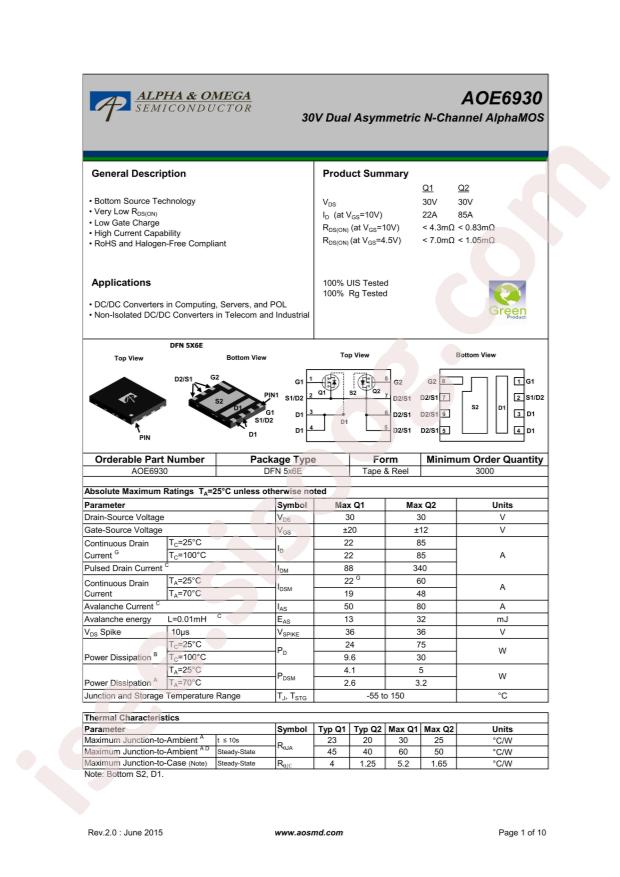

دیتاشیت AOE6930
مشخصات دیتاشیت
| نام دیتاشیت |
AOE6930
|
| حجم فایل |
78.128
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
2
|
مشخصات
-
RoHS:
true
-
Type:
2 N-Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Alpha & Omega Semicon AOE6930
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
24W;75W
-
Total Gate Charge (Qg@Vgs):
15nC@4.5V;65nC@4.5V
-
Drain Source Voltage (Vdss):
30V
-
Input Capacitance (Ciss@Vds):
1075pF@15V;5560pF@15V
-
Continuous Drain Current (Id):
22A;85A
-
Gate Threshold Voltage (Vgs(th)@Id):
2.1V@250uA;1.9V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
4.3mΩ@20A,10V;0.83mΩ@30A,10V
-
Package:
DFN(5x6)
-
Manufacturer:
Alpha & Omega Semicon
-
Part id:
879571
