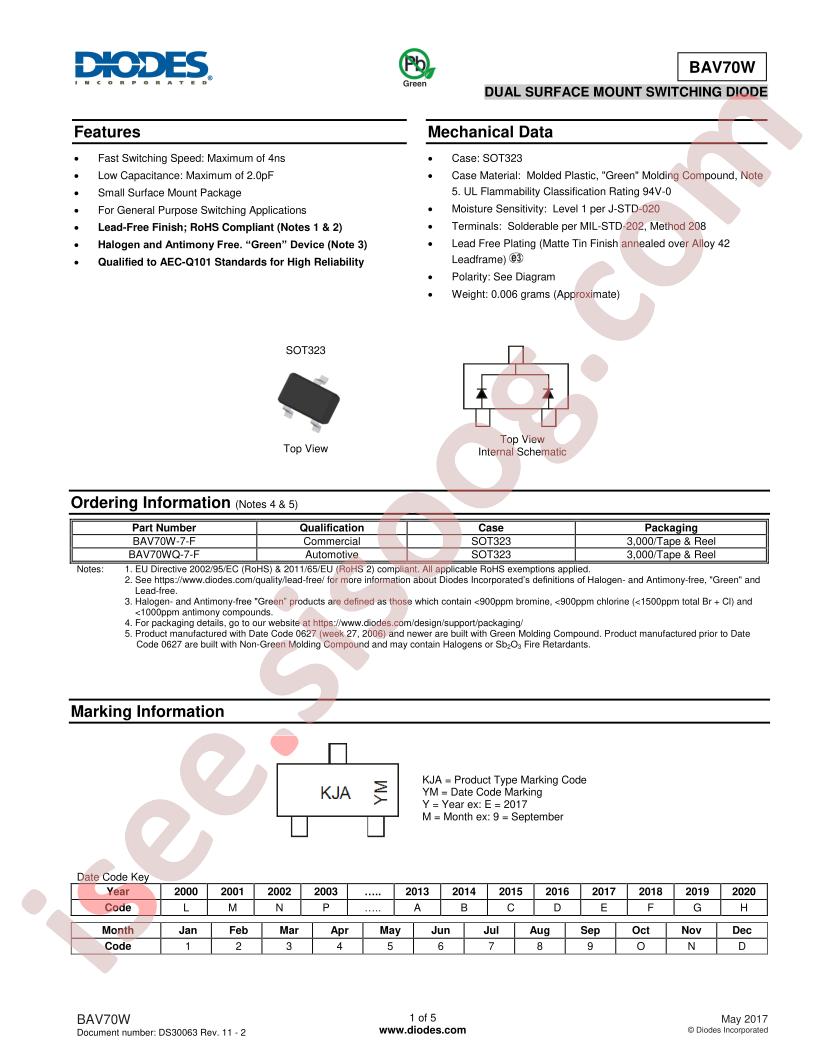

BAV70W-7-F Datasheet
Datasheet specifications
| Datasheet's name | BAV70W-7-F |
|---|---|
| File size | 62.027 KB |
| File type | |
| Number of pages | 7 |
Download Datasheet BAV70W-7-F |
Download Datasheet |
|---|
Other documentations
BAV70W-7-F 5 pages
BAV70W-7-F 3 pages
Technical specifications
- RoHS: true
- Category: Diodes/Switching Diode
- Datasheet: Diodes Incorporated BAV70W-7-F
- Power Dissipation: 200mW
- Diode Configuration: Dual Common Cathode
- Reverse Voltage (Vr): 75V
- Operating Temperature: -65°C~+150°C@(Tj)
- Forward Voltage (Vf@If): 1.25V@150mA
- Reverse Leakage Current: 2.5uA@75V
- Reverse Recovery Time (trr): 4ns
- Average Rectified Current (Io): 150mA
- Package: SOT-323(SC-70)
- Manufacturer: Diodes Incorporated
- Part id: 1053441
