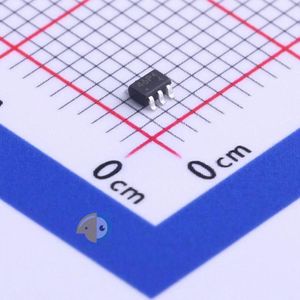

BC846BPN دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت BC846BPN	دانلود دیتاشیت

RoHS: true
Category: Triode/MOS Tube/Transistor/Bipolar Transistors - BJT

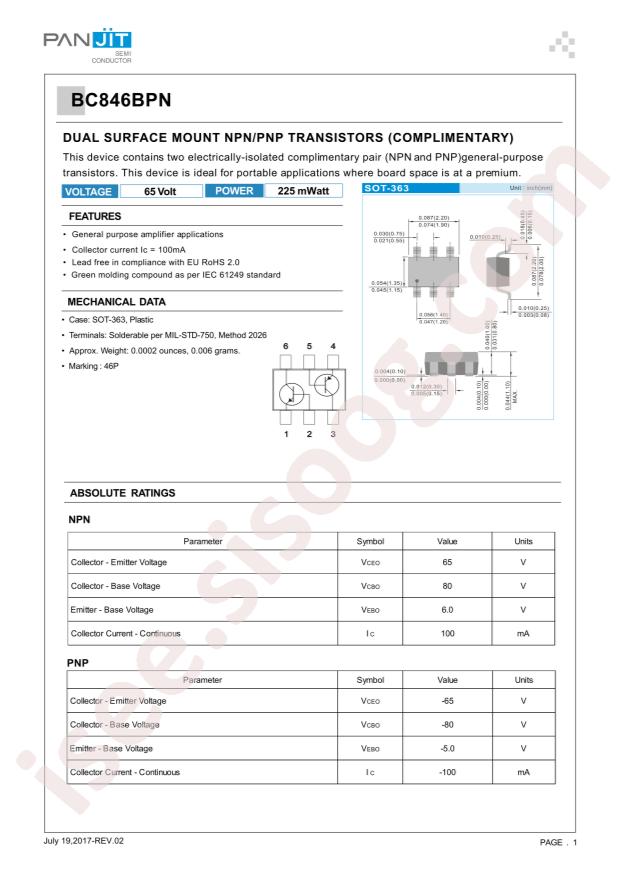

Datasheet: PANJIT International BC846BPN
Transistor Type: 1PCSNPN&1PCSPNP
Operating Temperature: -55°C~+150°C@(Tj)
Collector Current (Ic): 100mA
Power Dissipation (Pd): 225mW
Transition Frequency (fT): 100MHz
DC Current Gain (hFE@Ic,Vce): 200@2mA,5V;220@2mA,5V
Collector Cut-Off Current (Icbo): 15nA
Collector-Emitter Breakdown Voltage (Vceo): 65V
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib): 600mV@100mA,5mA;650mV@100mA,5mA
Package: SOT-363
Manufacturer: PANJIT International
Part id: 1015310
