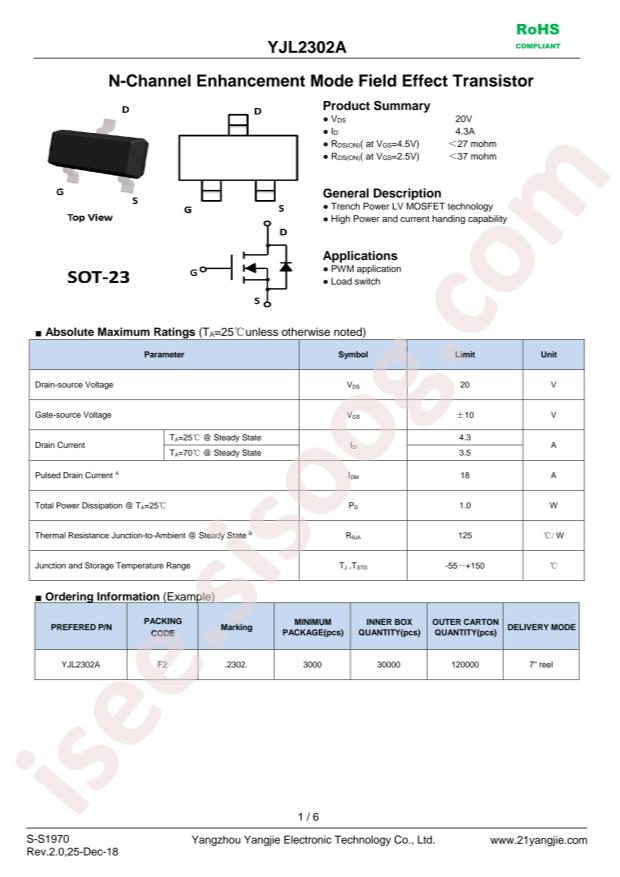

YJL2302A دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
YJL2302A
|
|
حجم فایل
|
61.281
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
6
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Yangzhou Yangjie Elec Tech YJL2302A
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
1W
-
Total Gate Charge (Qg@Vgs):
6.5nC@4.5V
-
Input Capacitance (Ciss@Vds):
602pF@20V
-
Continuous Drain Current (Id):
4.3A
-
Gate Threshold Voltage (Vgs(th)@Id):
1.25V@250uA
-
Reverse Transfer Capacitance (Crss@Vds):
-
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
27mΩ@4.3A,4.5V
-

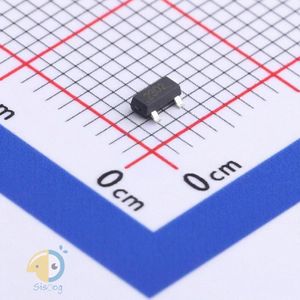

Package:
SOT-23-3L
-
Manufacturer:
Yangzhou Yangjie Elec Tech
-
Part id:
1241630
