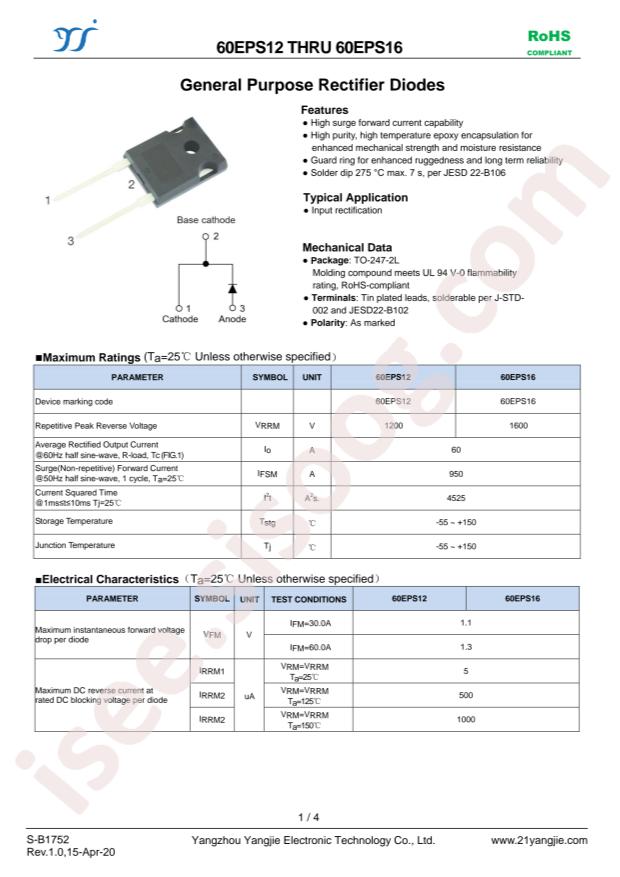

60EPS12 Datasheet
Datasheet specifications
|
Datasheet's name
|
60EPS12
|
|
File size
|
69.667
KB
|
|
File type
|
pdf
|
|
Number of pages
|
4
|
Technical specifications
-
RoHS:
true
-
Category:
Diodes/Bridge Rectifiers
-
Datasheet:
Yangzhou Yangjie Elec Tech 60EPS12
-
Reverse Voltage (Vr):
1.2kV
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Forward Voltage (Vf@If):
1.1V@30A
-
Peak Forward Surge Current:
950A
-
Reverse Leakage Current (Ir):
5uA@1.2kV
-
Average Rectified Current (Io):
60A
-
Package:
TO-247AC-2
-
Manufacturer:
Yangzhou Yangjie Elec Tech
-
Part id:
112097
