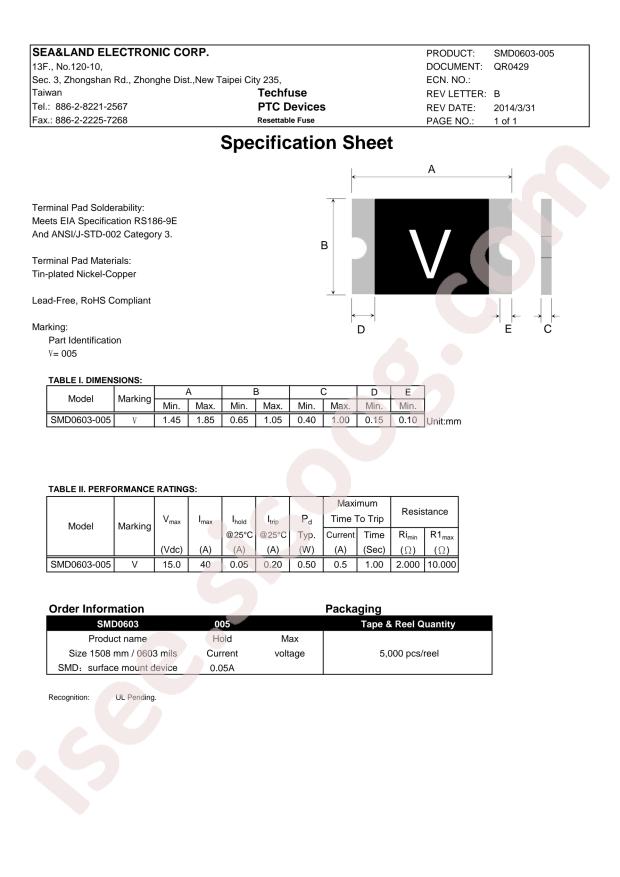

SMD0603-005 Datasheet
Datasheet specifications
| Datasheet's name | SMD0603-005 |
|---|---|
| File size | 57.605 KB |
| File type | |
| Number of pages | 1 |
Download Datasheet SMD0603-005 |
Download Datasheet |
|---|
Other documentations
SMD0603-005 6 pages
SMD0603-005 6 pages
Technical specifications
- RoHS: true
- Category: TVS/Fuse/Board Level Protection/Resettable Fuses
- Datasheet: TECHFUSE SMD0603-005
- Hold Current: 50mA
- Trip Current: 200mA
- Power Dissipation: 500mW
- Current Rating (Max): 40A
- Maximum Time to Trip: 1s
- Operating Temperature: -
- Operating Voltage (Max): 15V
- Resistance - Initial (Ri) (Min): 2Ω
- Resistance - Post Trip (R1) (Max): 10Ω
- Package: 0603
- Manufacturer: TECHFUSE
- Part id: 1282789
