دیتاشیت AUIRFS8408-7TRL
مشخصات دیتاشیت
| نام دیتاشیت | AUIRFS8408-7TRL |
|---|---|
| حجم فایل | 288.252 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 12 |
دانلود دیتاشیت AUIRFS8408-7TRL |

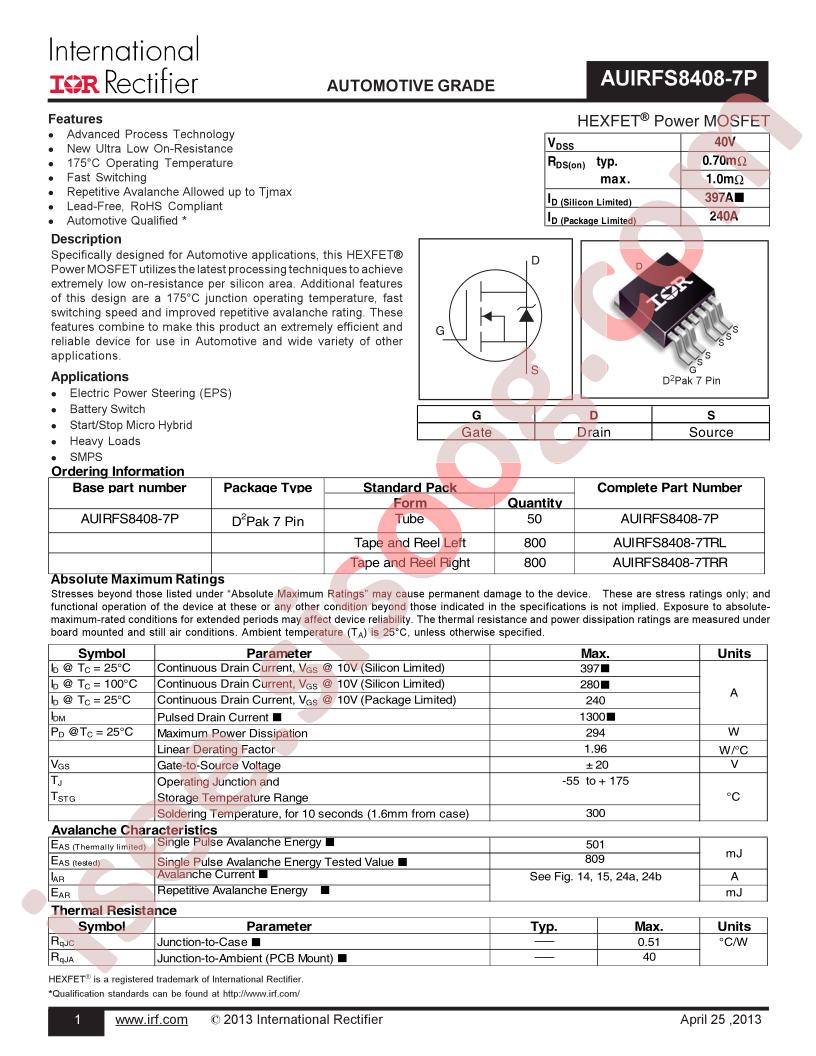

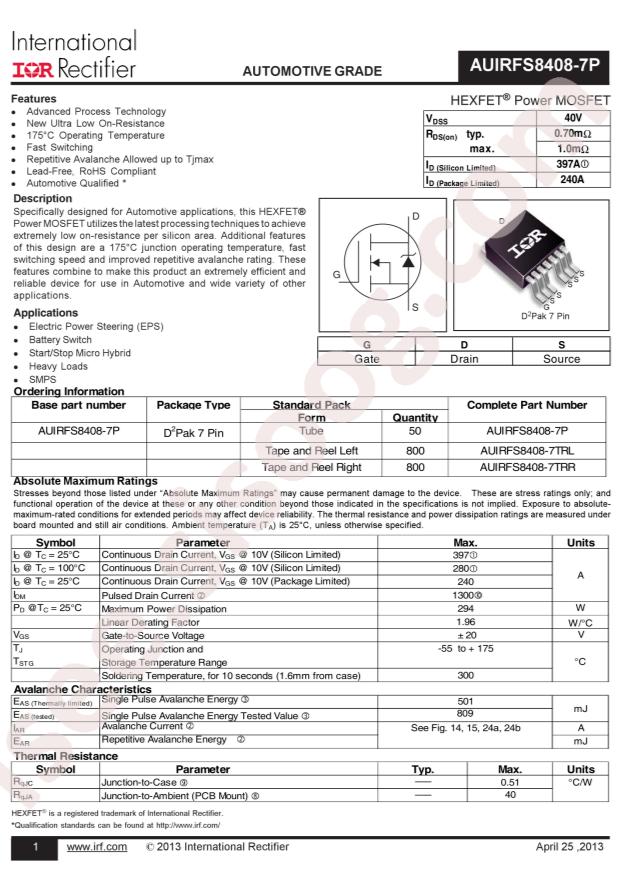

AUIRFS8408-7TRL Datasheet |
|---|
مشخصات
- RoHS: true
- Category: Triode/MOS Tube/Transistor/MOSFETs
- Datasheet: Infineon Technologies AUIRFS8408-7TRL
- Operating Temperature: -55°C~+175°C@(Tj)
- Power Dissipation (Pd): 294W
- Total Gate Charge (Qg@Vgs): 315nC@10V
- Drain Source Voltage (Vdss): 40V
- Input Capacitance (Ciss@Vds): 10250pF@25V
- Continuous Drain Current (Id): 240A
- Gate Threshold Voltage (Vgs(th)@Id): 3.9V@250uA
- Reverse Transfer Capacitance (Crss@Vds): -
- Drain Source On Resistance (RDS(on)@Vgs,Id): 1mΩ@100A,10V
- Package: D2PAK-7P
- Manufacturer: Infineon Technologies
- Part id: 571517
