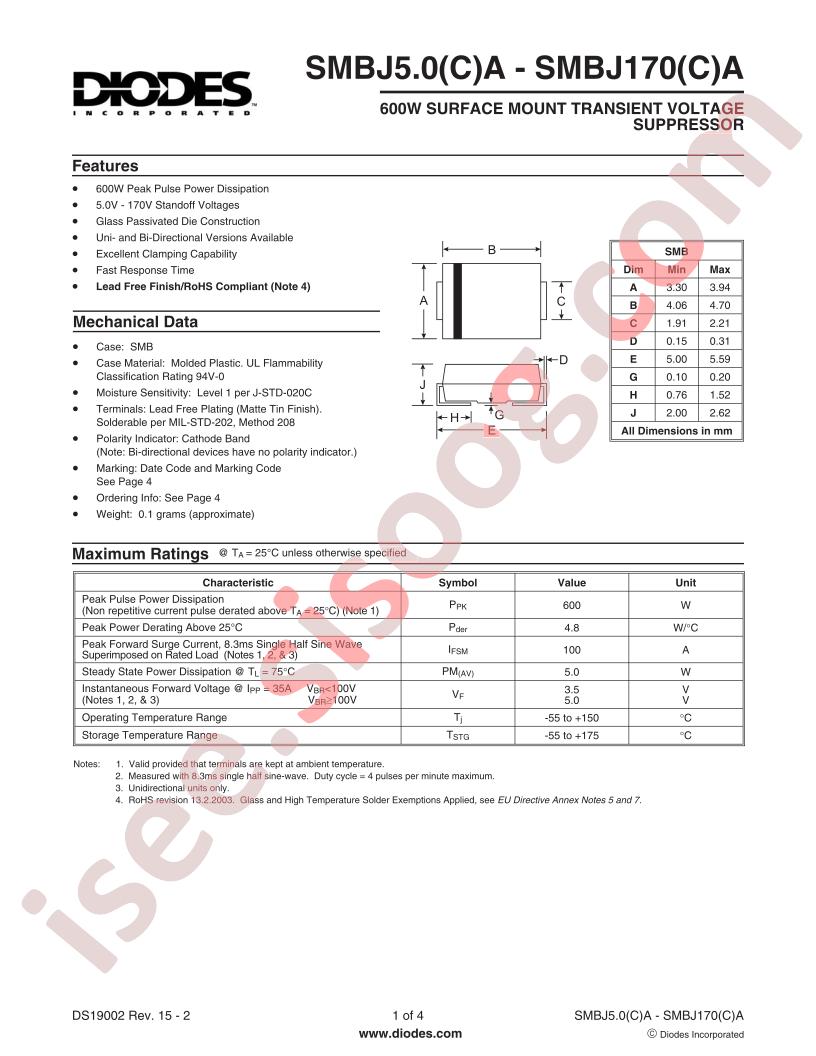

SMBJ20A Datasheet

SMBJ20A

Datasheet specifications

Datasheet's name SMBJ20A
File size 82.709 KB
File type pdf
Number of pages 4

Download Datasheet SMBJ20A

Download Datasheet

Other documentations

SMBJ5.0A-13-F 6 pages

Technical specifications

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/TVS
  • Datasheet: Diodes Incorporated SMBJ78A-13-F
  • Breakdown Voltage: 86.7V
  • Unidirectional Channels: 1
  • Maximum Clamping Voltage: 126V
  • Reverse Leakage Current (Ir): 5uA
  • Reverse Stand-Off Voltage (Vrwm): 78V
  • Peak Pulse Current (Ipp)@10/1000us: 4.7A
  • Peak Pulse Power Dissipation (Ppp)@10/1000us: 600W

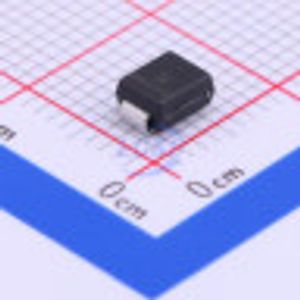

  • Package: SMB(DO-214AA)
  • Manufacturer: Diodes Incorporated
  • Part id: 178057
