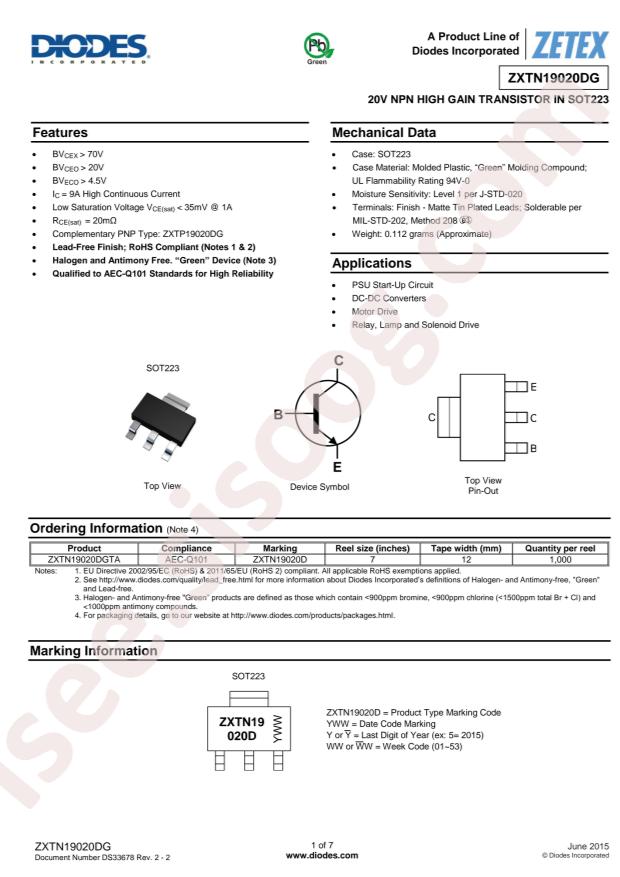

ZXTN19020DGTA دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
ZXTN19020DGTA
|
|
حجم فایل
|
71.438
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Bipolar Transistors - BJT
-
Datasheet:
Diodes Incorporated ZXTN19020DGTA
-
Transistor Type:
NPN
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Collector Current (Ic):
9A
-
Power Dissipation (Pd):
1.2W
-
Transition Frequency (fT):
160MHz
-
DC Current Gain (hFE@Ic,Vce):
30@20A,2V
-
Collector Cut-Off Current (Icbo):
50nA
-
Collector-Emitter Breakdown Voltage (Vceo):
20V
-
Collector-Emitter Saturation Voltage (VCE(sat)@Ic,Ib):
200mV@9A,450mA
-
Package:

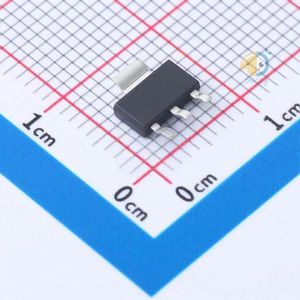

SOT-223
-
Manufacturer:
Diodes Incorporated
-
Part id:
250675
