PCS0G151MCL1GS 数据手册
其他文档
PCS0J391MCL1GS 2 pages
技术规格
- L: 6mm
- φD: 5mm
- RoHS: true
- Type: Polymer
- Category: Capacitors/Solid Capacitors

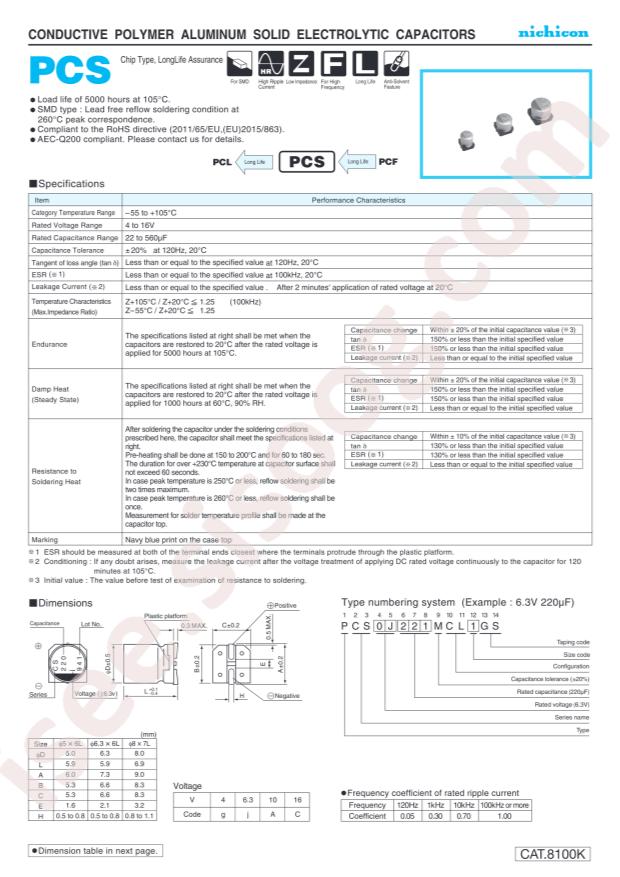

- Datasheet: Nichicon PCS0G151MCL1GS
- Tolerance: ±20%
- Capacitance: 150uF
- Lead Spacing: -
- Rated Voltage: 4V
- Ripple Current: 2200mA@100kHz
- Lifetime @ Temp: 5000hrs@105°C
- Operating Temperature: -55°C~+105°C
- Equivalent Series Resistance(ESR): 25mΩ@100kHz
- Package: SMD,5x6mm
- Manufacturer: Nichicon
- Part id: 1120683
