دیتاشیت 2N7002E-7-F
مشخصات دیتاشیت
| نام دیتاشیت |
2N7002E-7-F
|
| حجم فایل |
429.155
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
4
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
Diodes Incorporated 2N7002E-7-F
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
370mW
-
Total Gate Charge (Qg@Vgs):
0.22nC@4.5V
-
Drain Source Voltage (Vdss):
60V
-
Input Capacitance (Ciss@Vds):
50pF@25V
-
Continuous Drain Current (Id):
250mA
-
Gate Threshold Voltage (Vgs(th)@Id):
2.5V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
3Ω@10V,250mA
-

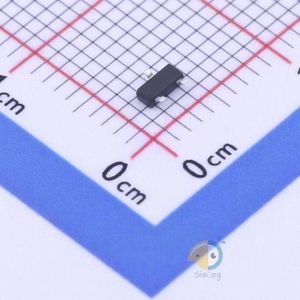

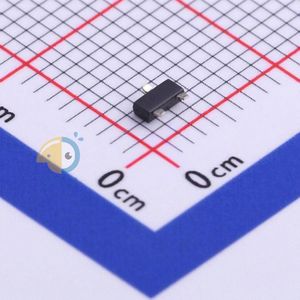

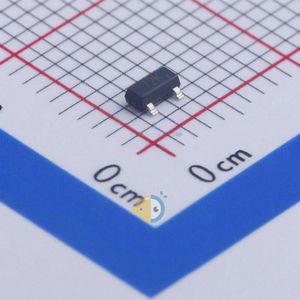

Package:
SOT-23
-
Manufacturer:
Diodes Incorporated
-
Part id:
178616
