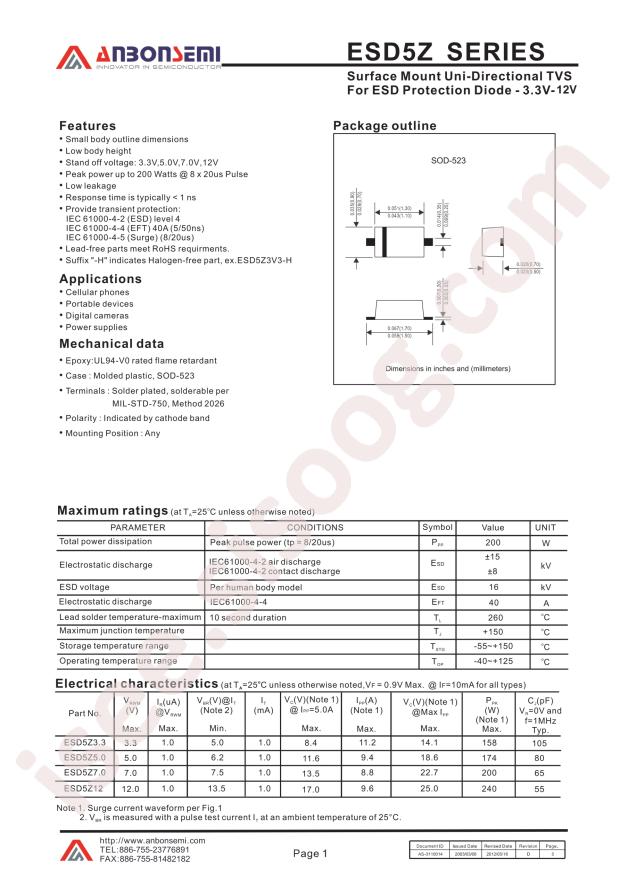

ESD5Z5.0 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
ESD5Z5.0
|
|
حجم فایل
|
85.966
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
5
|
مشخصات فنی
-
RoHS:
true
-
Category:
TVS/Fuse/Board Level Protection/ESD Protection Devices
-
Datasheet:
TECH PUBLIC ESD5Z5.0
-
Package:
SOD-523
-
Manufacturer:
TECH PUBLIC
-
Type:
-
-
Polarity:
Unidirectional
-
Machine Model:
-
-
Number of Lines:
-
-
Human Body Model:
-
-
Clamping Voltage@Ipp:
18.6V
-
Operating Temperature:
-55°C~+150°C
-
Contact Discharge Vesd:
30kV
-
Breakdown Voltage (VBR):
6.2V
-
Reverse Leakage Current:
1uA
-
Peak Pulse Power(Ppp)@8/20us:
174W
-
Junction Capacitance(Cj)@1MHz:
80pF
-
Peak Pulse Current(Ipp)@8/20us:
9.4A
-
Reverse Stand-Off Voltage (Vrwm):
5V
-
Part id:
216404
